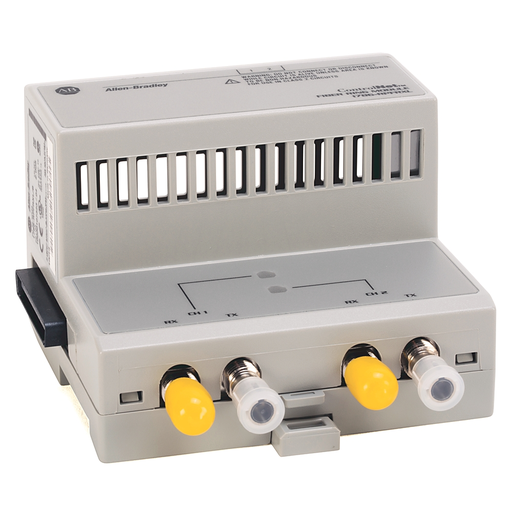

Allen Bradley 1786-RPFRXL ControlNet Extra Long Fiber Ring Repeater Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-RPFRXL | Codale Part # 3830976
$11,035.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Fiber Ring Ex Long Repeater

Technical Information

Applications
ControlNet
Mounting Type
DIN Rail
Number of Ports
2
Power Supply
24 V DC Power Supply
Standard
CE,CUL,GOST,KC,MARINE,RCM,UL
Type
Extra Long
Voltage
24 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet™

General Product Info

12-Digit UPC
612598269136
Product UPC
61259826913
Weight
0.7900 lb
Features
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Supports Master Device redundancy
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Includes 200 micron cable
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports ControlNet Media redundancy
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Displays useful field bus diagnostic information via status LEDs
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Links an EtherNet/IP™ network to a single H1 segment
  • Links a ControlNet™ network to a single H1 segment
  • Supports multiple levels of device and media redundancy
  • Self-contained, panel, or DIN-rail mountable device
  • Supports EtherNet/IP Media redundancy
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Use with the 1786-RPFS repeater
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Supports as many as 24 PA field devices
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Provides all basic diagnostic information in the input assembly
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
