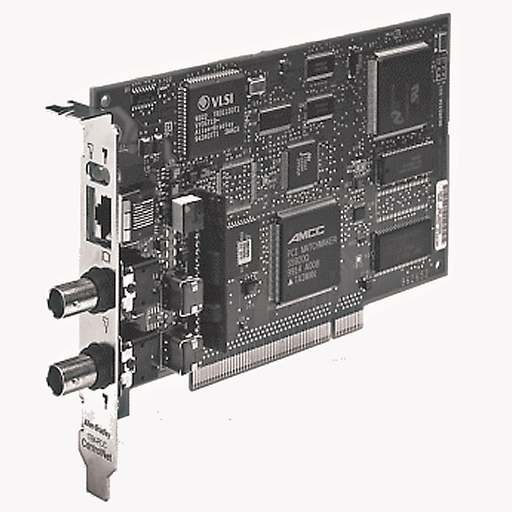

Allen Bradley 1784-PCICS ControlNet PCI PC Comms Scanner Card

Manufacturer: Allen Bradley / Rockwell | Catalog # 1784-PCICS | Codale Part # 3831049
$2,596.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet PCI PC Comms Scanner Card

Technical Information

Mounting Type
PCI Computer Slot
Power Supply
PCI Bus Slot
Standard
C-TICK,CE,CSA,CUL,GOST,KC,MARINE,UL
Type
Universal, Bridge

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet™

General Product Info

12-Digit UPC
612598180318
Product UPC
61259818031
Weight
0.9200 lb
Features
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Provides all basic diagnostic information in the input assembly
  • Links a ControlNet™ network to a single H1 segment
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Links an EtherNet/IP™ network to a single H1 segment
  • Use with the 1786-RPFS repeater
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports as many as 24 PA field devices
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Supports ControlNet Media redundancy
  • Supports EtherNet/IP Media redundancy
  • Displays useful field bus diagnostic information via status LEDs
  • Supports multiple levels of device and media redundancy
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Includes 200 micron cable
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Self-contained, panel, or DIN-rail mountable device
  • Supports Master Device redundancy
