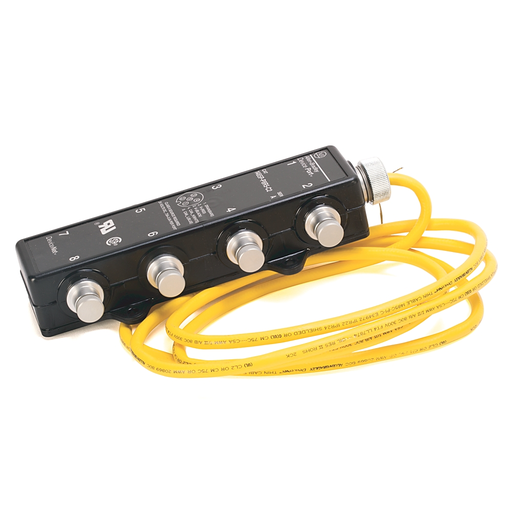

Allen-Bradley 1485P-P8T5-T5 8-Port Thin Trunk Device Box Tap

Manufacturer: Allen Bradley / Rockwell | Catalog # 1485P-P8T5-T5 | Codale Part # 3838003
$492.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
DeviceNet Connection Device

Technical Information

Amperage
8 Amp
Material
Polymer
Standard
CUL,KC,MARINE,UL
Tc Connection
Thick Cable Gland/Terminal Strip
Temperature Rating
-25 to 70 degrees C
Type
7-Port, Standard
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
DeviceNet™

General Product Info

12-Digit UPC
662468461603
Product UPC
66246846160
Weight
1.9800 lb
Features
  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Watertight connections (NEMA 4, 6P; IP 67)
  • E-stop T-ports and shorting plugs are red for easy identification
  • Physical key to ensure proper connection alignment
  • Sized to fit inside 1-in. conduit
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Gold plated contacts
  • Ratcheting coupling nut resists vibration
  • Many end devices, including Rockwell Automation® hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
