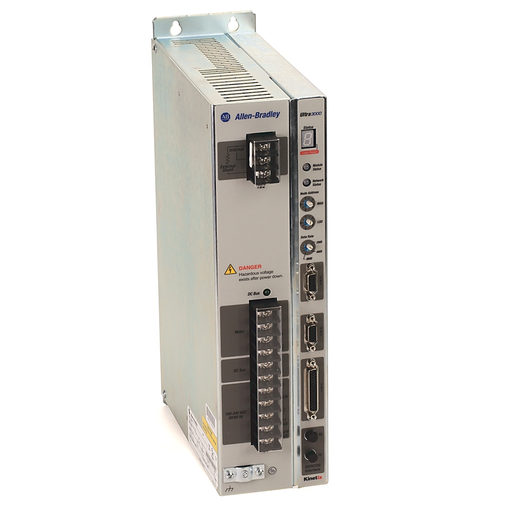

Product image for Allen-Bradley 2098-DSD-030-SE Ultra 3000 3 kW with Sercos Servo Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen-Bradley 2098-DSD-030-SE Ultra 3000 3 kW with Sercos Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-030-SE | Codale Part # 3840658
$5,331.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ultra 3000 3kW with SERCOS Servo Drive

Technical Information

Connection Type
SERCOS Interface
Control Type
SERCOS Interface
Input Current
28 A
Input Voltage
100 - 240 VAC
Output Current
10.6 A
Power Rating
3 kW at 230 VAC, 1.5 kW at 115 VAC
Standard
CE,KC
Tc Connection
SERCOS Interface
Temperature Rating
55 degrees C
Type
Digital
Voltage
115-230 Volt
Wattage
3 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Ultra 3000

General Product Info

12-Digit UPC
662453934495
Product UPC
66245393449
Weight
17.5600 lb
Features
  • Uses standard high-density D-Shell connectors
  • Four selectable general purpose outputs and relay output
  • Field-programmable flash memory firmware storage
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
  • One serial port for RS-232 or RS-485 communications
  • Eight selectable general purpose inputs
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
