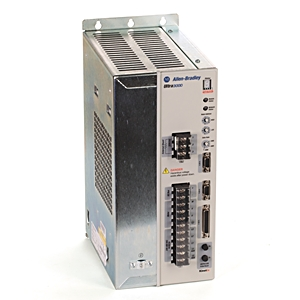

Product image for Allen Bradley 2098-DSD-HV100X-DN Ultra 3000 Servo Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 2098-DSD-HV100X-DN Ultra 3000 Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-HV100X-DN | Codale Part # 3894080
$6,551.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ultra 3000 Servo Drive

Technical Information

Control Type
DeviceNet Interface
Input Current
14 A
Input Voltage
230 - 480 VAC
Output Current
16.3 A
Power Rating
10 kW at 480 VAC, 5 kW at 230 VAC
Temperature Rating
55 degrees C
Type
Digital
Voltage
230-480 Volt
Wattage
10 kW

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
662453959429
Product UPC
66245395942
Weight
27.3000 lb
Features
  • Field-programmable flash memory firmware storage
  • One serial port for RS-232 or RS-485 communications
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
  • Four selectable general purpose outputs and relay output
  • Uses standard high-density D-Shell connectors
  • Eight selectable general purpose inputs
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
