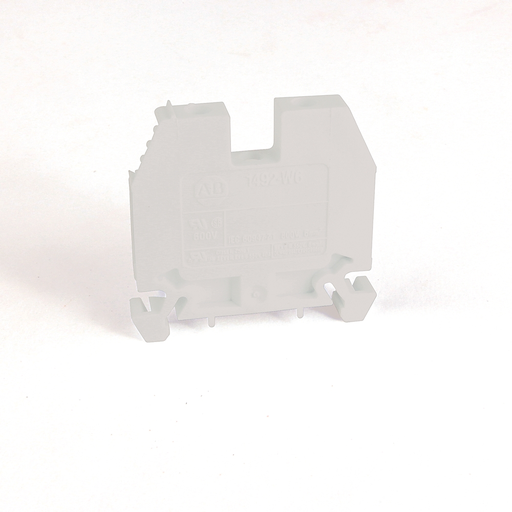

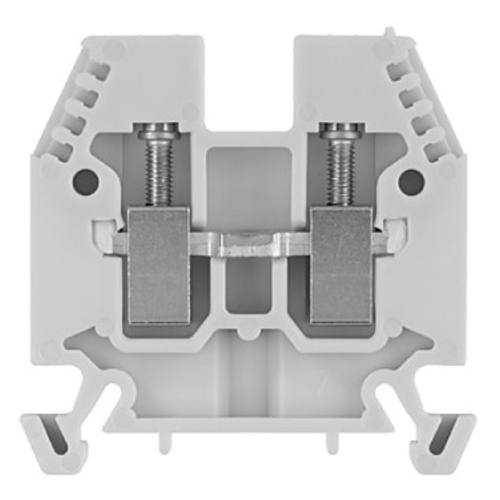

Product image for A-B 1492-W6-W IEC Term Blck 8x47.6x
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

A-B 1492-W6-W IEC Term Blck 8x47.6x

Manufacturer: Allen Bradley / Rockwell | Catalog # 1492-W6-W | Codale Part # 3894898
$6.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
IEC Term Blck 8x47.6x41mm Screw

Technical Information

Amperage
40 Amp
Conductor Size
22-10 AWG/22-12 AWG
Connection Type
Screw
Number of Poles
1 Pole
Standard
CCC,CE,CSA,CUL,UL
Terminal Size
7 x 47.6 x 41 mm
Type
IEC Space Saver, Feed-Through, 1-Circuit
Voltage
550 Volt
Wire Size
UR-22-10 AWG, CSA-22-10 AWG, IEC-0.5-6 mm, ATEX-6 mm

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
1492

General Product Info

12-Digit UPC
662468590549
Color
White
Product UPC
66246859054
Weight
0.0310 lb
Features
  • Backed out screws
  • Four-sided funnel wire guides
  • Self-locking screw type clamp design
  • Wide range of accessories available
  • Compatible with several high visibility snap-in marker cards
  • Backed-out screws
  • Copper current bar and tin-plated surface
  • Tin-plated terminal and zinc chromate steel screws
  • Finger-safe housing
  • Counter-sinking of clamping screws
  • Easy installation or removal from both sides of DIN Rail
