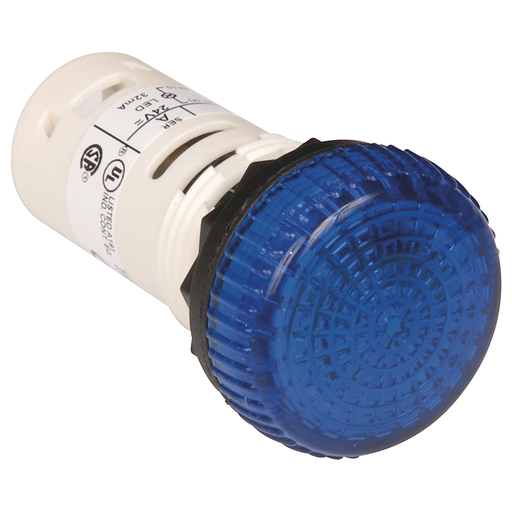

Allen Bradley 800FD-P6N3 22 mm Pilot Light

Manufacturer: Allen Bradley / Rockwell | Catalog # 800FD-P6N3 | Codale Part # 3950895
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
22mm Pilot Light 800F PB

Technical Information

Connection Type
No Contact Blocks/ Latch Only
Contact Configuration
None
Lens Color
Blue
Lens Material
Monolithic
Material
Monolithic
Standard
CCC,CE,CSA,CUL,KC,UL
Tc Connection
No Contact Blocks/ Latch Only
Type
22mm Pilot Light
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
800F PB

General Product Info

12-Digit UPC
662074317325
Color
Blue
Product UPC
66207431732
Weight
0.0600 lb
Features
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • IP66, NEMA Type 4/4X/13
  • Aesthetic design complements the Bulletin 800F modular line
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • 800FP plastic operators
  • Electrical and mechanical interlocks
  • Low back-of-panel profile (45.7 mm)
  • Momentary or alternate action
  • Panel mount sounder
  • 30 and 40 mm
  • Maintained or spring return
  • Selector or toggle switch
  • 22.5 mm mounting hole
  • Finger-safe contact blocks
  • Ring lug capability
  • 2-, 3-, and 4-position
  • Multi-operators
  • Key selector switches
  • Twist-to-release or key release
  • Single turn potentiometer
  • Illuminated or non-illuminated
  • Reset push button
  • Pilot light operators
  • Compatible with Bulletin 800F accessories and enclosures
  • Plastic or aluminum
  • 800FM metal operators
  • Uses standard Bulletin 800F extended push buttons
  • Flush or extended 2-color molded legend caps
  • Mushroom or half-dome
