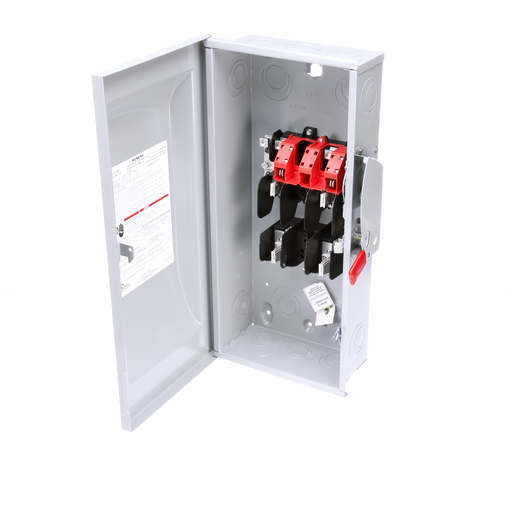

Siemens GF223N 240 VAC/250 VDC 100 Amp 2-Pole 3-Wire NEMA 1 General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF223N | Codale Part # 400994
$269.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 1 enclosure (indoor). Rated 240VAC (100A). Horse power (Std, Time delay) fused: 1-PH 2-W (7-1/2, 15), 3-PH 3-W (15, 30), 250VDC (20). Special features: service entrance labeled suitable for 3-PH motor loads.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
100 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA1
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
1
Net Weight
20,04 lb
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-20 To 120 degrees F
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Fusible
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643148079
Product UPC
78364314807
Weight
20.000 lb

Dimensions

Height
7.7 Inch
Length
25.6 Inch
Width
14.100 in

Certifications and Compliance

Country of Origin
Mexico
