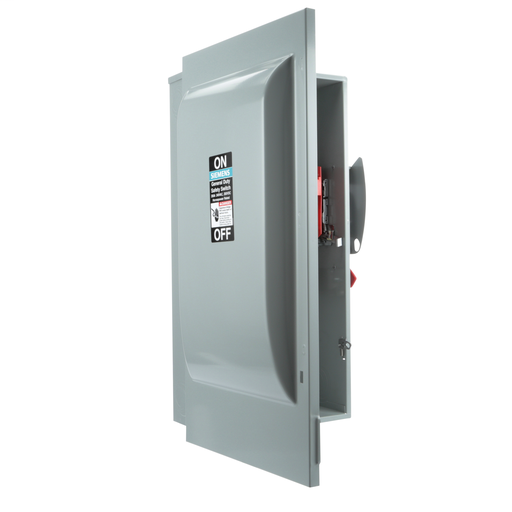

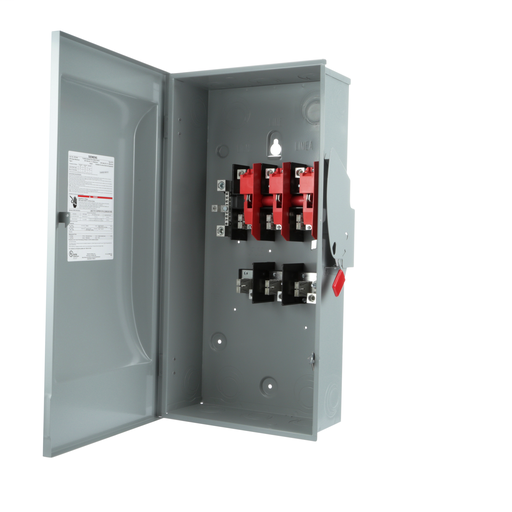

Siemens GF324N 240 VAC/250 VDC 200 Amp 3-Pole 4-Wire NEMA 1 General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF324N | Codale Part # 400997
$790.20/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
200A 3P 240V 4W FUSED GD TYPE 1

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
200 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA1
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
1
Net Weight
41,689 lb
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Cycles
8000
Operating Temperature
-20 To 120 degrees F
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Fusible
Voltage
240 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643148161
Product UPC
78364314816
Weight
41.600 lb

Dimensions

Height
10.1 Inch
Length
33.7 Inch
Width
18.800 in

Certifications and Compliance

Country of Origin
Mexico
