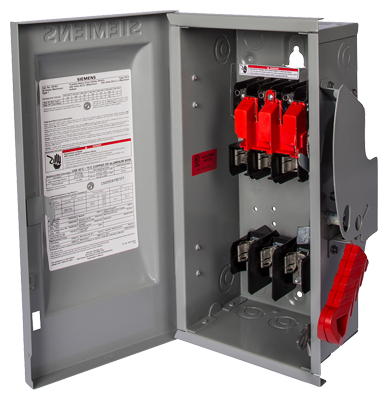

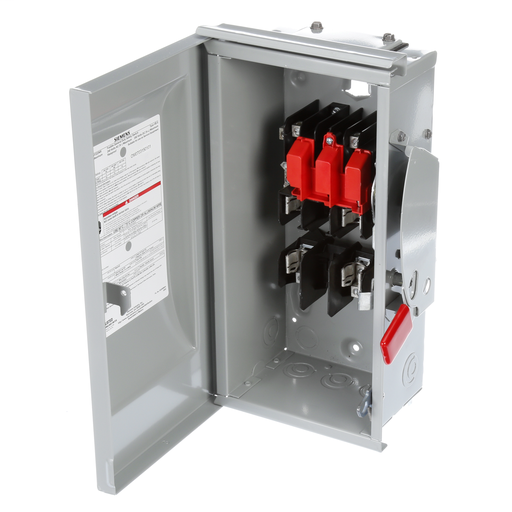

Product image for Siemens GF222NR 240 VAC/250 VDC 60 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Siemens GF222NR 240 VAC/250 VDC 60 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF222NR | Codale Part # 401001
$137.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Throw Safety Switch

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
60 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Current
60 Amp
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
304SS
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
3
Net Weight
12,632 lb
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-20 To 120 degrees F
Size
15.76 in
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Fusible
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643149212
Product UPC
78364314921

Certifications and Compliance

Country of Origin
Mexico
Features
  • Cover Interlock
  • Tangential Knockouts 100 to 600 Amp for Easy Conduit Lineup
  • Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation
  • Visible Blade, Double-Break Switch Action
  • Positive 2 or 3 Point Mounting
  • Highly Visible Red Handle Grip
  • Handle and Cover Padlocking Provisions
  • Wiring Gutters that Meet or Exceed NEC Wire-Bending Space Requirements
  • Service Entrance Labeled Suitable for 3-PH Motor Loads
Additional Information
  • Number of Fuses 2
  • Application Grounded B-Phase System, 3-Phase Motor
