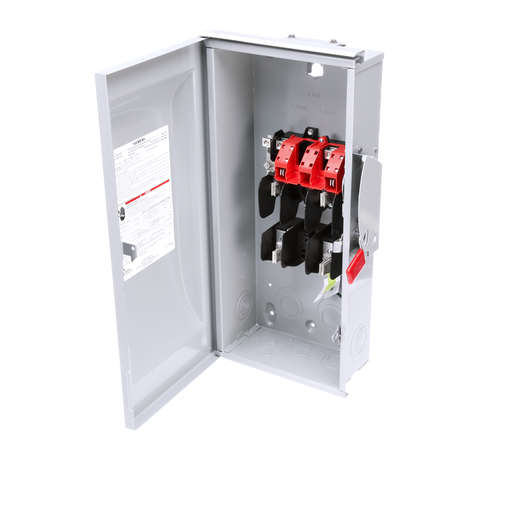

Product image for Siemens GF223NR 240 VAC/250 VDC 100 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens GF223NR 240 VAC/250 VDC 100 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF223NR | Codale Part # 401002
$296.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
100A 2P 240V 3W FUSED GD TYPE 3R

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
100 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
304SS
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
3
Net Weight
20,635 lb
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-20 To 120 degrees F
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Fusible
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643149229
Product UPC
78364314922
Weight
20.600 lb

Dimensions

Height
7.7 Inch
Length
25.8 Inch
Width
14.000 in

Certifications and Compliance

Country of Origin
Mexico
