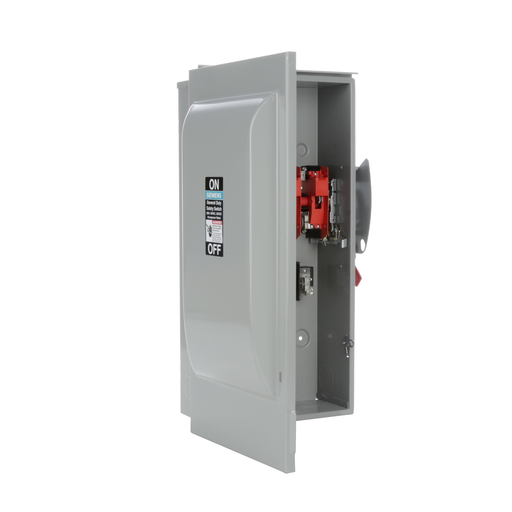

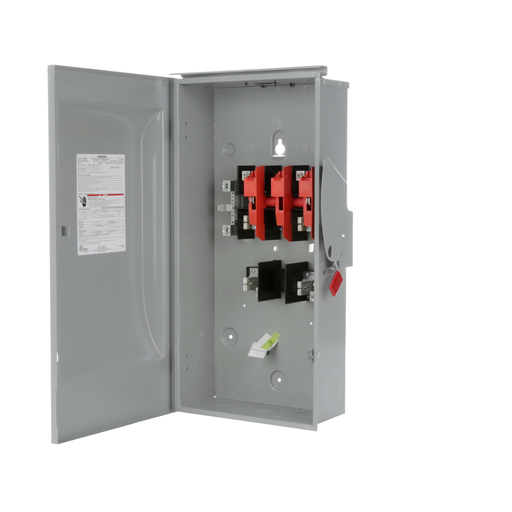

Product image for Siemens GF224NR 240 VAC/250 VDC 200 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Siemens GF224NR 240 VAC/250 VDC 200 Amp 2-Pole 3-Wire NEMA 3R General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF224NR | Codale Part # 401003
$763.37/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
200A 2P 240V 3W FUSED GD TYPE 3R

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
200 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
304SS
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
3
Net Weight
40,896 lb
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Cycles
8000
Operating Temperature
-20 To 120 degrees F
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Fusible
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643149236
Product UPC
78364314923
Weight
40.800 lb

Dimensions

Height
10.1 Inch
Length
34.1 Inch
Width
18.800 in

Certifications and Compliance

Country of Origin
Mexico
