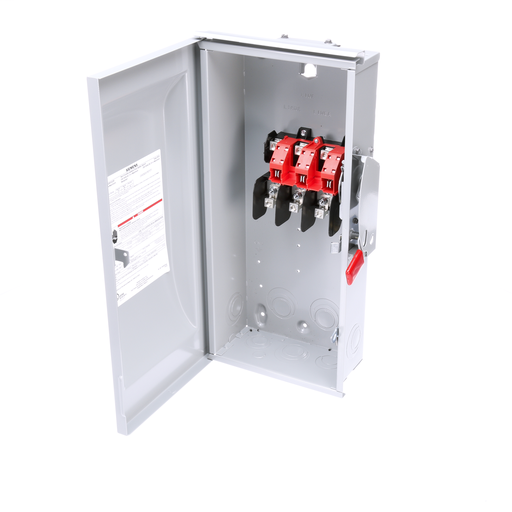

Product image for Siemens GNF323R 240 VAC/250 VDC 100 Amp 3-Pole 3-Wire NEMA 3R General Duty Non-Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens GNF323R 240 VAC/250 VDC 100 Amp 3-Pole 3-Wire NEMA 3R General Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # GNF323R | Codale Part # 401011
$454.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
100A 3P 240V 3W NON-FUSED GD TYPE 3R

Technical Information

Action
Single Throw
Actuator
Lever
Ambient Temperature
-29 degrees C
Amperage
100 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA3R
Material
Steel
Mounting Type
2 Or 3 Point
NEMA Size
3
Net Weight
20,04 lb
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Cycles
UL 98 Cycles
Operating Temperature
-29 degrees C
Size
H 23.46 x W 11.67 x D 14.68 inches
Standard
UL 98
Tc Connection
MECHANICALLUGS
Type
Non-Fusible
Voltage
240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643150027
Product UPC
78364315002
Weight
20.000 lb

Dimensions

Height
8 Inch
Length
25.7 Inch
Width
14.000 in

Certifications and Compliance

Country of Origin
Mexico
