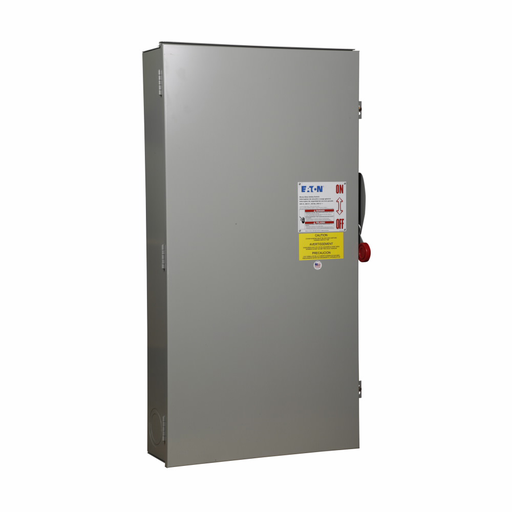

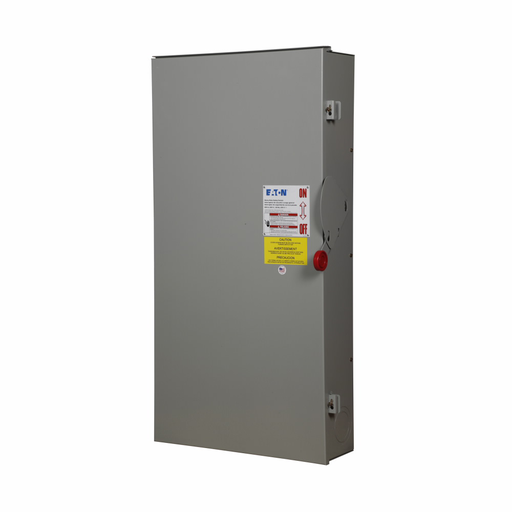

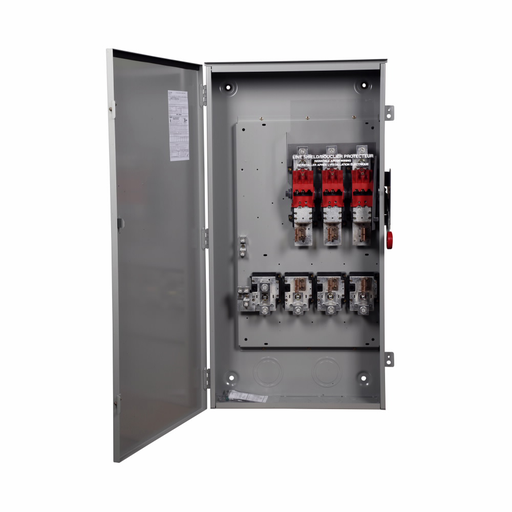

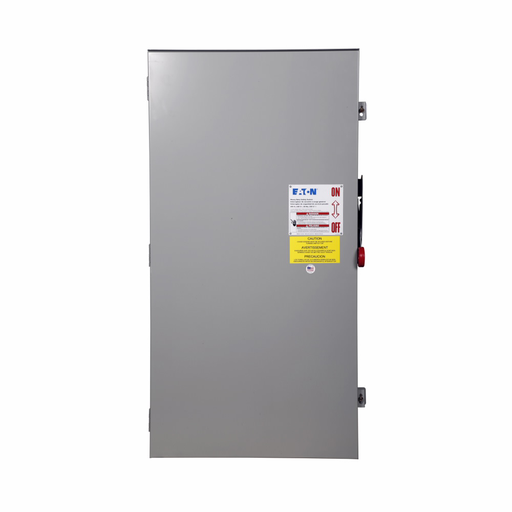

Product image for ETN DH325NRK 400A/3P HD FSBL Sfty S
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

ETN DH325NRK 400A/3P HD FSBL Sfty S

Manufacturer: Eaton Cutler-Hammer | Catalog # DH325NRK | Codale Part # 401072
$2,793.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton Heavy duty single-throw fused safety switch, 400 A, NEMA 3R, Painted galvanized steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 50, 125/ 50 hp (3PH @Std, TD/250 Vdc), (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Al

Technical Information

Amperage
400 Amp
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Enclosure
3R
Enclosure Material
Steel
Material
Steel
NEMA Size
3R
Number of Poles
3 Pole
Number of Wires
4 Wire
Standard
UL
Type
Heavy Duty Fusible Safety Switch
Voltage
240 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113207070
Product UPC
78211320707
Weight
120 lb

Dimensions

Height
10-1/4 Inch
Length
45-1/2 Inch
