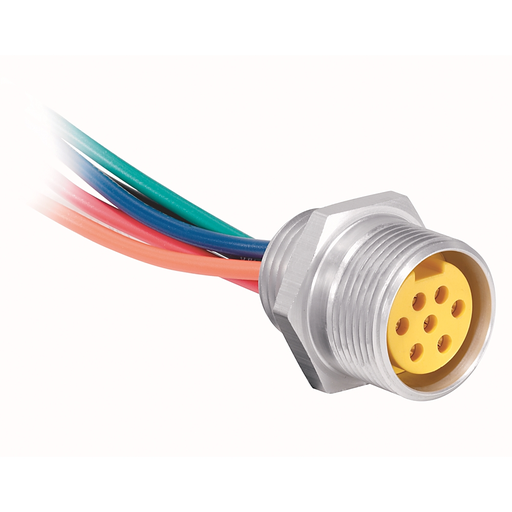

Product image for Allen Bradley 888N-F7AF1-1F Mini Plus-Style Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 888N-F7AF1-1F Mini Plus-Style Receptacle

Manufacturer: Allen Bradley / Rockwell | Catalog # 888N-F7AF1-1F | Codale Part # 4016305
$59.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Mini Receptacle

Technical Information

Applications
1/2 x 14 NPT
Conductor Size
16 AWG
Connection Type
Mini
Material
Aluminum
Number of Conductors
7-Pin
Number of Pins
7
Number of Poles
7 Pole
Standard
CSA
Tc Connection
Mini
Type
Receptacle
Wire Size
16 AWG

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
611320876451
Color
US Color Code
Product UPC
61132087645
Weight
0.2200 lb

Dimensions

Length
1 Foot
Features
  • Reduce installation cost
  • Includes mounting nut and rubber sealing washer
  • Includes I.E.C. color code
  • Includes M8 x 0.5 mounting threads for convenient installation
  • Connectors are straight or right-angled and are physically keyed to prevent wiring mishaps
  • Includes M20 x 1.5 mounting threads for convenient mounting to safety switches
  • Includes female bulkhead receptacles
  • Female receptacles can be used for a panel mount connection
  • Includes standard 22 AWG conductors
  • Includes male and female bulkhead receptacles
  • Includes standard 12-inch lead (additional lengths available)
  • Includes a connector shell design that accommodates threaded male connector types only
  • Includes 16 AWG conductors
  • Cabling options include cordsets and patchcords
  • Receptacles provide termination points at the panel and at the ArmorStart® Distributed Motor Controller
  • Allows field installation with no hand tools needed
  • Provides 12-pin configuration provides standard connectivity
  • Provides standard US automotive color code
  • Includes anodized aluminum shell
  • Simplify troubleshooting
  • Ease system expansion
  • Male receptacles can be used for a quick disconnect at the ArmorStart® Distributed Motor Controller with gland plate design
  • Promote system modularity
  • Includes PG9
  • Allows easy modification of existing cable installations
  • Includes 22 AWG conductors
  • Control power tees offer flexibility in system design
  • Includes female and male bulkhead receptacles
  • Provides a Viton® o-ring
  • Support systems up to Category 3 (per EN954-1)
  • One piece molded design construction
  • Includes 1/2 in. 14 NPT threads
  • Provide for Safety PLC input expansion
