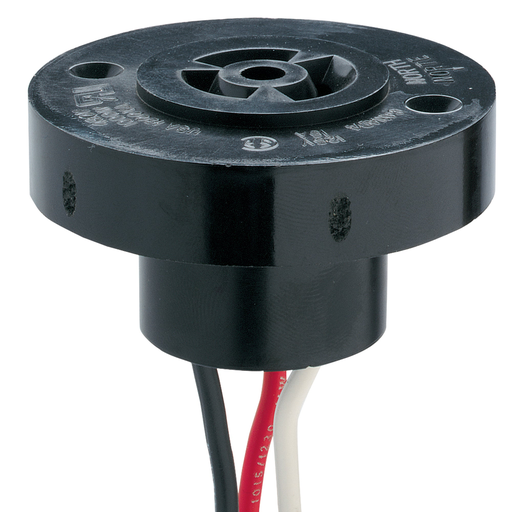

Product image for Intermatic K121 480 Volt 15 Amp Locking Type NEMA Receptacle with 9 Inch Wire Lead
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic K121 480 Volt 15 Amp Locking Type NEMA Receptacle with 9 Inch Wire Lead

Manufacturer: Intermatic | Catalog # K121 | Codale Part # 402733
$27.02/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The K121 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself (K121), or attached externally with the use of a mounting bracket (K122).

Technical Information

Amperage
15 Amp
Applications
Parking lots, landscape lighting, exterior lighting, pedestrian pathway
Material
Polycarbonate
Max Operating Temperature
176 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Locking Type
Number of Conductors
3
Sensor Type
Connector interface for locking type photocontrols
Temperature Rating
80.0 degrees C
Type
Locking-Type Receptacle
Voltage
105-480 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275045408
Color
Black
Finish
Plastic
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827504540
Used With
Lighting, pathways
Weight
0.2300 lb

Dimensions

Diameter
3 Inch7.6 cm
Height
2-3/4 Inch
Warranty Length
1 yr

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • NEMA receptacle with 3-prong sockets
  • Compliant to ANSI C136.10 specifications
  • NA
