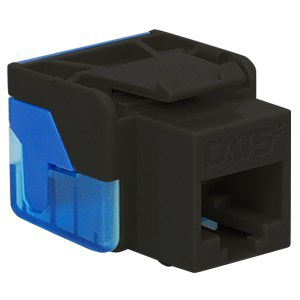

ICC IC1078E5BK BLACK CAT5e 8P8C MODULAR CONNECTOR JACK

Manufacturer: ICC Premise Wiring Products | Catalog # IC1078E5BK | Codale Part # 402786
$7.20/ea
ea
Log in or register to view your price, purchase history, and more!
27 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Category 5e EZ Category 5e modular jacks, RJ-45 keystone jack, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced design provides optimum signal quality with up to 10dB headroom providing maximum bandwidth for today.s application. Designed to be extremely easy to terminate, the Category 5e EZ modular jacks simplifies installation and improves overall installation time. Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSI/TIA-568-C.2

Technical Information

Connection Type
8P8C,Insulation Displacement Connector (IDC); Accepts 22-24 AWG Solid Wire
Current
1.5 Amp
Performance Level
CAT5e

Manufacturer Information

Brand
ICC Compliance Center, Inc.

General Product Info

12-Digit UPC
633758004022
Color
Almond,Black,Black,Blue,Clear Blue,Gray,Green,Ivory,Orange,Purple,Red,White,Yellow
Housing Material
PC, UL 94V-0
Product Type
Keystone Jacks
Product UPC
63375800402
Weight
0.0100 lb

Certifications and Compliance

Country of Origin
Taiwan
Features
  • CAT5e rated connectors provide excellent performance for data networks.
  • PCB technology provides maximum performance and superior signal quality.
  • Enhanced crosstalk cancellation reduces return loss and improves performance.
  • Exceeds Category 5e industry performance requirements.
  • Terminate with 110 punch down tool.
  • Designed with rear 110 IDC reducing termination time.
  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backward compatible to all lower rated category components.
  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • For use with Category 5e patch cords.
  • Exceeds ANSI/TIA-568-C requirements for permanent performances.
  • UL 1863 Compliant.
