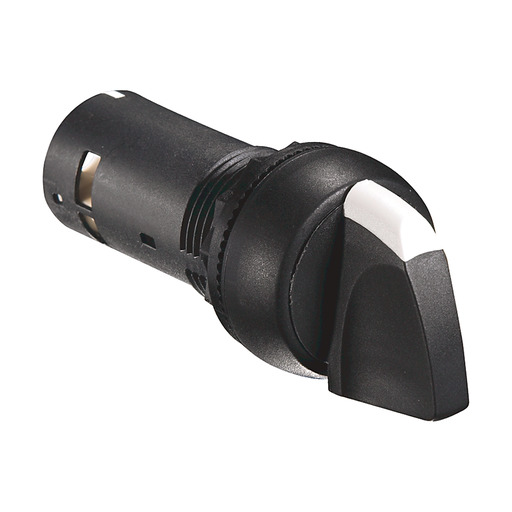

Allen-Bradley 800FD-SB32X20 22 mm Selector Switch for Push Button

Manufacturer: Allen Bradley / Rockwell | Catalog # 800FD-SB32X20 | Codale Part # 4036523
$46.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
22mm Selector Switch 800F PB

Technical Information

Action
Spring Return from Both
Actuator
Spring Return from Both, 3 Pos
Illumination Type
No Power Module
Material
Monolithic
Mounting Type
No Contact Blocks
Number of Positions
3
Operator Type
Selector Switch - Standard Knob
Orientation
Standard Orientation
Size
22 mm
Standard
CCC,CE,CSA,CUL,KC,UL
Type
22mm Selector Switch

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
800F PB

General Product Info

12-Digit UPC
662074318445
Color
Black
Product UPC
66207431844
Weight
0.0700 lb
Features
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • Aesthetic design complements the Bulletin 800F modular line
  • Finger-safe contact blocks
  • Low back-of-panel profile (45.7 mm)
  • Electrical and mechanical interlocks
  • IP66, NEMA Type 4/4X/13
  • Compatible with Bulletin 800F accessories and enclosures
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Ring lug capability
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Uses standard Bulletin 800F extended push buttons
