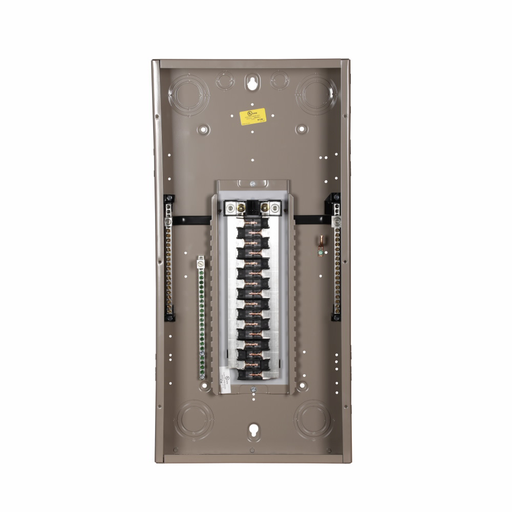

Eaton CH32L150D 3/4 Inch Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # CH32L150D | Codale Part # 409740
$280.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
CH 3/4-inch loadcenter,Standard,Main lug only,150A,D,Copper,Ch8df-combination, ch8ds-surface,NEMA 1,Metallic,Top/bottom,CH,32,32,Three-wire,Single-phase,#4 AWG-300 kcmil

Technical Information

Amperage
150 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Copper
Conductor Size
300 kcmil
Cover Type
Ch8df-combination, ch8ds-surface
Enclosure
NEMA 1
Enclosure Material
Metal
Feed Type
Bottom,Top
Interrupt Rating
25 kAIC
Number of Circuits
32
Number of Phases
1 Phase
Number of Spaces
32
Number of Wires
3 Wire
Size
D
Type
Main Lug Only
Wire Size
300 kcmil

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113098029
Product UPC
78211309802
Weight
15 lb

Dimensions

Height
3.88 Inch
Length
29.13 Inch
