Milwaukee 48-20-3902 1/2" x 13" (7-1/2" Drilling Depth) 2-Cutter Rotary Hammer Drill Bit, Carbide, SDS-Max

Manufacturer: Milwaukee Tool | Catalog # 48-20-3902 | Codale Part # 409883

$31.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

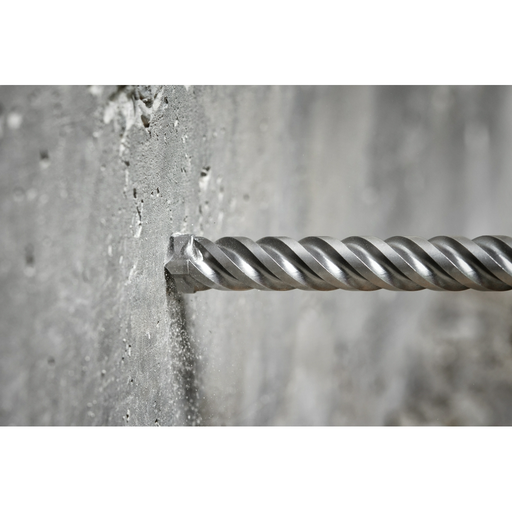

Milwaukee® SDS-Max drill bits provide faster drilling speeds, increased life, and more cordless efficiency. Breaker point pulverize the material leading to up to 20% faster drilling speeds. Rebar guards protect the bit when hitting hard aggregate and rebar leading to longer life. Variable flutes remove the dust out of the hole more efficiently resulting in up to 15% more holes per battery charge. Wide flute entrances lead to faster drilling speeds, while reinforced flutes prevent bit breakage, rendering increased durability in tough concrete applications. The centering tip allows for exact spot drilling. All SDS-Max drill bits meet the ANSI specification for drilling holes for anchor applications and include wear mark indicator when signifying when the bit no longer meets the ANSI spec.

Technical Information

Applications
For Concrete, Stone
Bit Diameter
1/2 in
Bit Type
Percussion
Cutting Depth
8 in
Drilling Depth
7.5 in
Material
Carbide
Number of Flutes
2
Shank Type
SDS Max
Size
1/2 Inch
Style
SDS-MAX
Type
2-Cutter

Packaging

Pkg Qty
1 Pack

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
SDS

General Product Info

12-Digit UPC
045242101979
Product UPC
04524210197
Used With
For Fast Bit Changes and Efficient Power Transfer From the Hammer to the Bit, Use Only in SDS MAX Drive Hammers
Weight
0.8300 lb

Dimensions

Diameter
1/2 Inch
Flute Length
4.5 in
Height
1/2 Inch
Length
13 Inch
Overall Length
13 in
Shank Diameter
0.5 in
Width
1/2 in
Features
  • Breaker points for up to 20% faster drilling speeds
  • Rebar guards for increased DuraGuard in hard aggregate and rebar
  • Variable flutes for up to 15% more holes per battery charge
  • Reinforced flutes to avoid bit breakage
  • Wide flute entrance for increased faster dust removal
  • Wear mark indicators to indicate end of life
  • Centering tip of exact spot drilling
  • ANSI specified to fit common anchors
