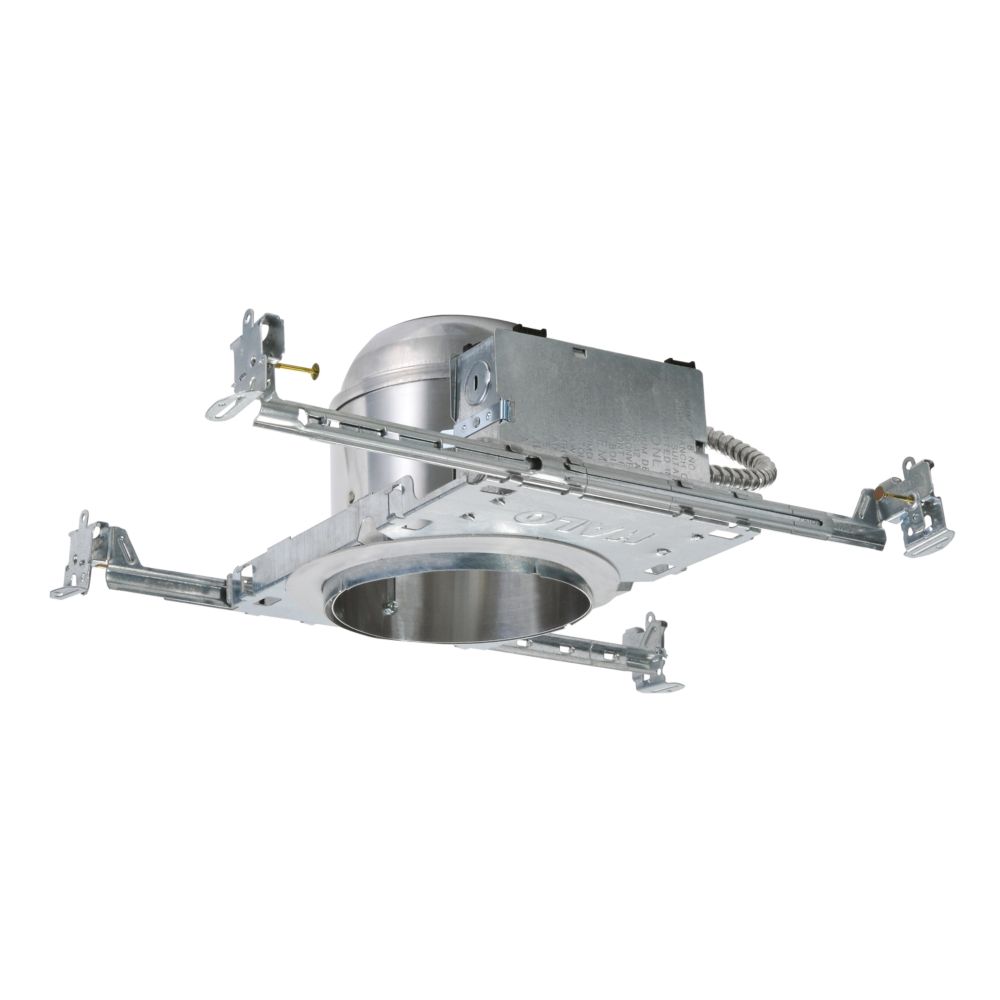

Product image for Halo H25ICAT 5" Housing ICAT Shallow 120V Line Voltage
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Halo H25ICAT 5" Housing ICAT Shallow 120V Line Voltage

Manufacturer: Cooper Lighting Solutions | Catalog # H25ICAT | Codale Part # 410694
$72.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Halo H25ICAT is designed for use in shallow ceilings. The variety of trims available allows a number of lighting effects to be created with one basic housing. The H25ICAT is designed for use in insulated shallow ceiling applications. The H25ICAT housing is an AIR-TITETM housing and may be used to meet Restricted Air Flow requirements.

Technical Information

Aperture Size
5 in
Applications
Lighting
Ballast Type
N/A
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
1
Style
(blank)
Type
5" H5 Shallow Housing
Voltage
120 Volt

Manufacturer Information

Brand
Halo
Sub Brand
H25ICAT Series

General Product Info

12-Digit UPC
662400664109
Finish
Raw Finish
Product UPC
66240066410
Weight
2.25 lb

Dimensions

Diameter
5 Inch
Height
6 Inch
Length
14.2 Inch
Width
12.2 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • Got Nail!™ bar hangers
  • Pass-N-Thru™ tool-less shortening of bar hangers
  • Slide-N-Side™ wire traps
  • Quick Connect wiring connectors included in junction box
  • AIR-TITE™
  • Thermally protected
  • Die-formed housing and plaster frame
  • Designed for use in shallow ceilings
  • Housing may be removed from plaster frame for junction box access
