Hubbell HBL14W47 15A 125V ELASTOGRIP Yellow Watertight Plug, Straight

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL14W47 | Codale Part # 4108616
$40.03/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
14-10 AWG
Cord Type
Portable
Current
15 Amp
Grounding
Yes
Horsepower
0.50 hp
Material
Composite
Mounting Type
Surface
NEMA
5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Tc Connection
Terminal Screws
Type
Elasto-Grip, Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585013008
Color
Yellow
Environmental Conditions
Weather Resistant
Product Series
Elastogrip
Product UPC
78358501300
Weight
0.2 lb

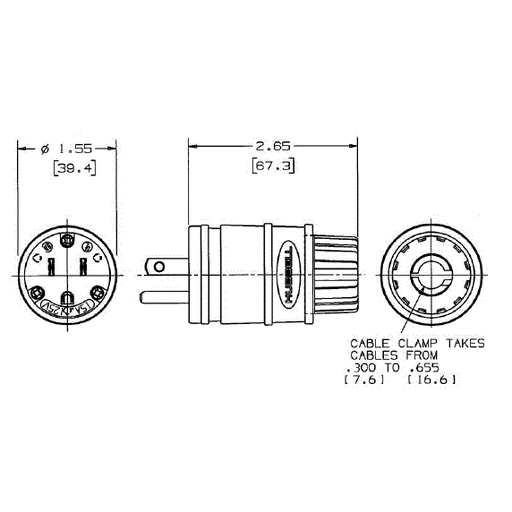

Dimensions

Height
2.65 Inch
Length
2.65 Inch
Width
1.55 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
