Burndy YAEV6CH1 6 AWG NYL HVYDTY RING

Manufacturer: Hubbell-Burndy | Catalog # YAEV6CH1 | Codale Part # 4109379
$8.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Ring-Tongue Terminals, 6 Max. Insul.Dia.: .38"Sleeve, Color: Blue, 8-10, 1.73 in L, Nylon-Insulated For Expanded Insulation, 600 Volts Max.

Technical Information

Applications
For Larger Conductor Insulation Diameters
Color Coding
Blue
Connection Type
Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Type
YAEV-H, Heavy Duty
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810038093
Product UPC
78181003809
Weight
0.0100 lb

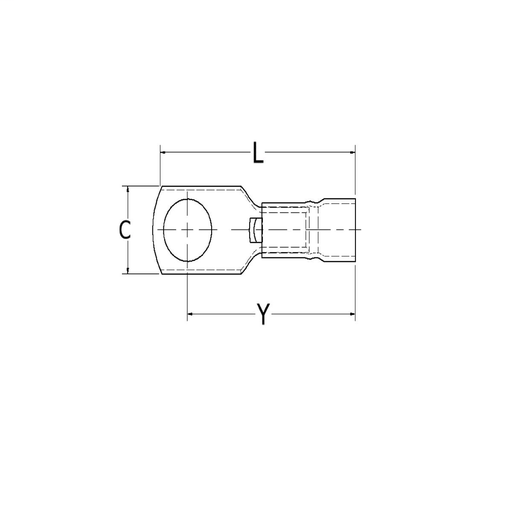

Dimensions

Height
0.22 Inch
Length
1.72 Inch
Overall Length
1.72 in
Width
0.48 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Standards - Industry Standards Met
  • UL486
  • Military Specified (Mil-Spec)
Conductor Type
  • CU C Solid-Size
  • CU C Str-Size
Industry Standard(s)
  • UL486
  • Military Specified (Mil-Spec)
Features
  • Features: Designed To Accommodate Larger Conductor Insulation Diameters, Made Of One Piece Tin Plated Pure Electrolytic Seamless Copper Tubing For Maximum Conductivity And Ductility, Color-Coded Insulating Sleeves Are Locked Into Position, Inspection Hole Permits Visual Check Of Wire Insertion, Meets Requirements Of SAE-AS7928, BMY BNCH-MT Bench Mount Adapter Available, Insulation Diameter (maximum): 0.38 IN, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: Y29NC, Y29BH Tool, DEV6L Die Nest, Y29PLE-1 Die Indentor, Wire Strip Length: 1/2 IN, Color Code: Blue, Finish: Tin Plated, Installation Tool: HYTOOL, HYPRESS: MY28-6, Y35, Y39 Tool With U6CET Die Set
