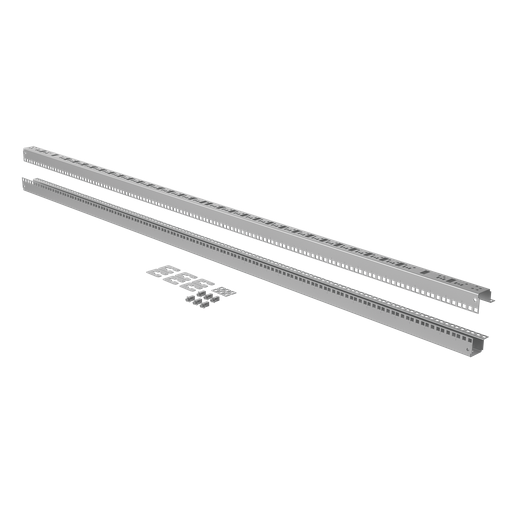

Hoffman P2RA19S22 ProLine G2 19-Inch Rack Angles, Sq Hole, 2200mm, Conductive, Steel

Manufacturer: nVent Hoffman | Catalog # P2RA19S22 | Codale Part # 4109942
$434.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The ProLine G2 Rack Angles mount using BV-M6 fasteners instead of the traditional cage nut and screw combination. The Rack Angle height and rack unit count are optimized for the ProLine G2 frame heights. Rack Angles have two mounting surfaces that function in the attachment of rack-mount equipment and accessories. Rack Angles comply with AN SI/EIA RS-310-D rack mounting standards.

Technical Information

Applications
Controls and Drives
Material
Steel
Rack Unit
47
Type
Internal Mounting for ProLine Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510326142
Color
Unpainted
Finish
Plated
Product UPC
78351032614
Weight
19.2 lb

Dimensions

Depth
1.89 Inch
Height
5 Inch
Length
86 Inch
Thickness
1.9 mm
Width
2.56 in
DISK UNSPSC
39121334
Features
  • Furnished in pairs
  • Can be mounted directly to the frame, or at variable depths using Adjustable Rack-Mounting Rails or Grid Straps; when mounted to the frame there is 44mm between the door opening and the Rack Angle mounting surface
  • Single-bay Frames: in a 600-mm wide frame, Rack Angles can be mounted in-line with the frame; in an 800-mm wide frame, Adjustable Rack-Mounting Rails or Frame Reducing Brackets are required (sold separately) to achieve the 19-inch rack spacing
  • Double-Bay Frames: in a 1200-mm wide frame, Center Uprights must be used to create a mounting surface in the center of the enclosure for either bay; in a 1600-mm frame, Center Uprights are again required in addition to Frame Reducing Brackets or Adjustable Rack-Mounting Rails to achieve the 19-inch rack spacing
  • Tapped-Hole Rack Angles accommodate 10-32 screws for equipment mounting
  • Square-Hole Rack Angles accept both metric and English cage nuts and screws: most commonly M5, M6, and 10-32 screws
  • Optional Shelves, Drawers, and Guides require two sets of Rack Angles to secure within the frame
  • All mounting hardware for Rack Angle installation into the frame is included; mounting hardware for securing rack-mount equipment/accessories to the Rack Angles is either supplied with the item or purchased separately
  • Tapped Rack Angles are constructed from 12 gauge (2.5 mm) conductive steel, while Square-Hole Rack Angles are from 14 gauge (1.75 mm) conductive steel
  • Load rating of 20 lbs (9.1 kg) per rack unit for equipment under 20-inches (508 mm) in depth; All equipment over 20-inches in depth requires rear rack angles for support
