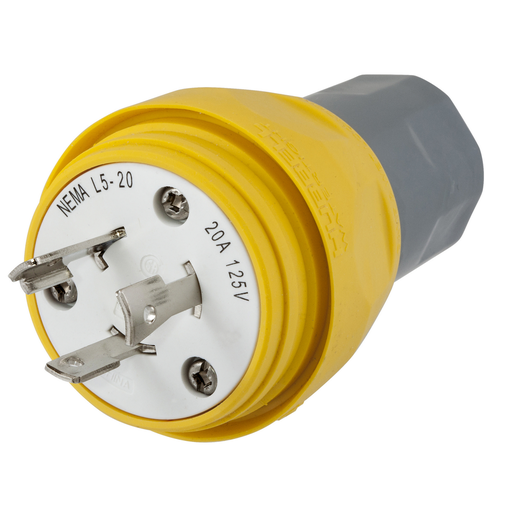

Hubbell HBL26W47 20 Amp 125 Volt 2-Pole 3-Wire Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26W47 | Codale Part # 4111229
$73.82 /ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Plug, 20A, 125V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-20P, Yellow

Technical Information

Amperage
20 Amp
Applications
For Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S Min, 10/3 S, 10/4 S, 10/5 S, 14-12 Max AWG
Cord Size
3/8 - 7/8 in
Cord Type
Portable, SJ, S
Current
20 Amp
Dielectric Strength
2500 VAC
Grounding
Yes
Material
Thermoplastic
Mounting Type
Cord

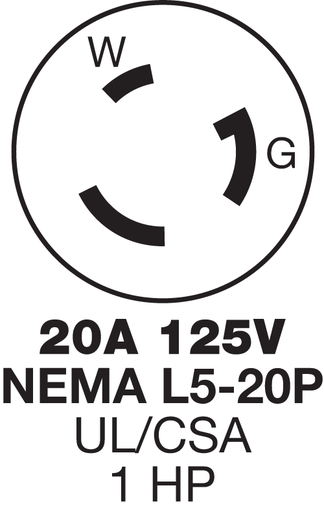

NEMA
L5-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

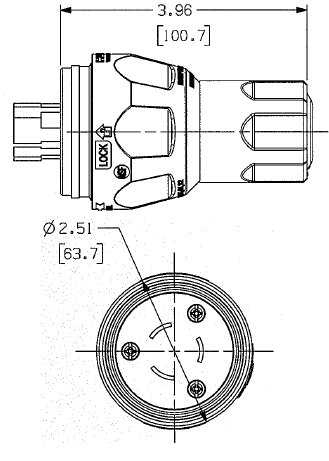

2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Standard, Non-Shrouded, Watertight
Voltage
125 Volt
Wire Count
3
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight®

General Product Info

12-Digit UPC
783585131382
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513138
Weight
0.5100 lb

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
