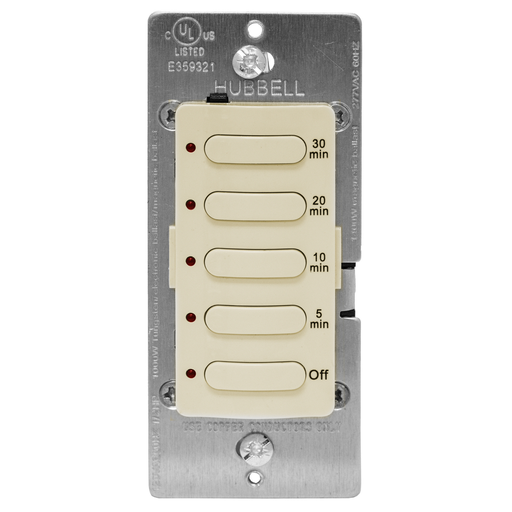

HWDK DT5030I TIMER 30MIN, 8.3A 120/

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DT5030I | Codale Part # 4111392
$78.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Timer Switches, Single Pole, 8.3A120/277V AC, 30 Minute Delay Time Out, Ivory

Technical Information

Amperage
8.3 Amp
Applications
For Circuit Control
Conductor Size
14 AWG
Contact Rating
8.3A
Material
Polycarbonate
Number of Poles
2 Pole
Operating Temperature
11 degrees C

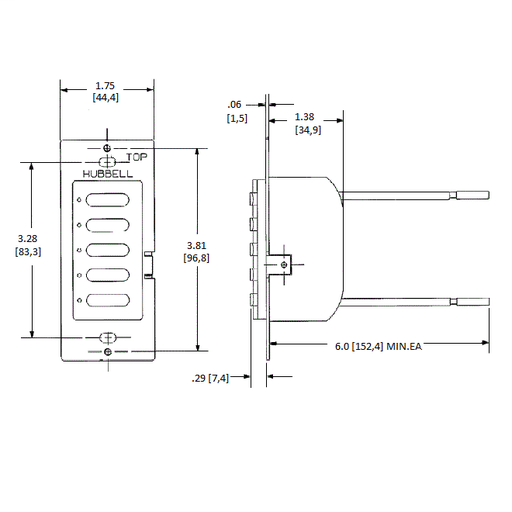

Size
3.81 in x 1.75 in x 2.27 in
Standard
CEC Title 24,CULus,Meets ASHRAE 90.1,UL60730-1,UL60730-2
Tc Connection
Terminal Screws
Temperature Rating
-40 to 150 degrees F
Type
Standard
Voltage
120/277 Volt
Wattage
1000/1400 Watt
Wire Length
6 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Timers

General Product Info

12-Digit UPC
783585256405
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Fixed Countdown
Product UPC
78358525640
Weight
0.3000 lb

Dimensions

Height
2.27 Inch
Length
3.81 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • 30 minute timer
  • Pre-set 5 button selection with permanent time markings
  • Manual override to OFF
  • Alert to OFF function - red LED will flash during the final 30 seconds
  • Designed for use on 120 or 277V AC circuits
