Burndy YAV10T2 HYLUG™, 12-10 AWG, 8-10, 97 in L, 36 in W, Tin- Electro plated

Manufacturer: Hubbell-Burndy | Catalog # YAV10T2 | Codale Part # 4113962
$84.74/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Hylug, 12-10 AWG, 8-10 , .97 in L, .36 in W, Tin- Electro plated.

Technical Information

Applications
For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
Cable Size
14 AWG Stranded, 12 AWG Solid/Stranded To 14 AWG Stranded, 12 AWG Solid/Stranded
Conductor Size
10 AWG
Connection Type
Ring Terminal
Material
Copper
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.3125 in
Type
Compression Ring Terminal

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810025260
Color
Black,White
Product UPC
78181002526
Weight
0.0060 lb

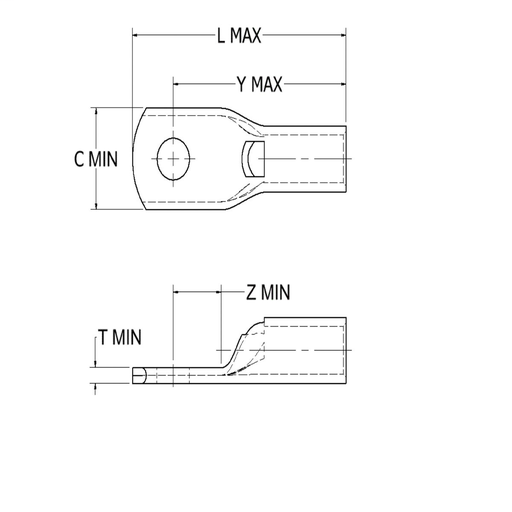

Dimensions

Height
0.21 Inch
Length
1.13 Inch
Overall Length
29 mm
Width
0.55 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
  • Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
  • Double thick tongue structurally a very strong terminal tongue
  • Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
  • Internally bevelled barrel for easy cable entry, especially for flexible conductors
  • Inspection hole provides easy visual check for proper conductor insertion
  • Electro-tin plated for a long lasting durable corrosion resistance
