Erico EGBA14412LL Grounding Busbar, w/Insulators and Brackets, LL, 12" x 4" x 0.25"

Manufacturer: Caddy Fasteners | Catalog # EGBA14412LL | Codale Part # 4114124
$444.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

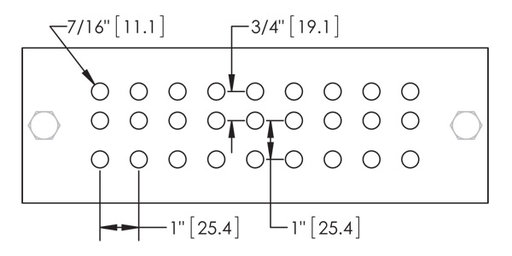

Common earthing point for multiple electrical panels and devices. Includes busbar, insulators and brackets. Busbar has a LL hole pattern.

Technical Information

Applications
Facility Electrical Protection; Lightning Protection; Panel; Rail; Telecom; Utility
Material
Copper
Pigtail Included
No
Standard
CUL,UL
Tin Plating
No
Type
Grounding Busbar

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856512523
Product UPC
78285651252
Weight
2.43 kg

Dimensions

Length
12 Inch
Thickness
1/4 in
Width
4 in

Certifications and Compliance

Certifications
CULus
Features
  • Provides a convenient, single-point grounding and bonding location
  • Conductors are welded to the bar using a nVent ERICO Cadweld exothermic connection or are mechanically fastened by using lugs
  • Custom bars can be designed and manufactured to customer specifications
Certifications
  • UL ANSI/UL 467
  • cUL CSA C22.2 No. 41
