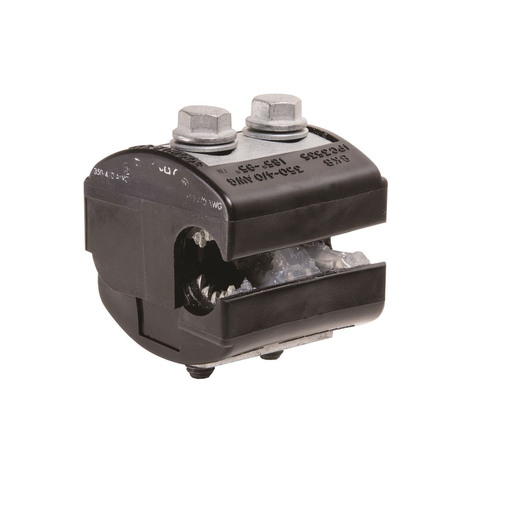

Burndy BIPC350350 350-350KCMIL INSL PR

Manufacturer: Hubbell-Burndy | Catalog # BIPC350350 | Codale Part # 4115389
$237.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Insulation Piercing Connector, 4/0 AWG-350 kcmil (Run), 4/0 AWG-350 kcmil (Tap), 300 V.

Technical Information

Applications
For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
Bolt Size
3/8-16 IN
Connection Type
Insulation Piercing
Material
Aluminum
Max Voltage
300 V
Plated?
No
Plating Type
Unplated
Temperature Rating
90 C
Type
BIPC
Voltage
300 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810128749
Product UPC
78181012874
Weight
1.0400 lb

Dimensions

Height
3 Inch
Length
2.62 Inch
Overall Length
67 mm
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Insulation piercing capability eliminates the need for insulation stripping
  • UL486B Listed, AL9CU Rated, for copper and aluminum conductor combinations up to 90° C, 600 Volt applications
  • Insulation piercing design eliminates the need for taping, especially helpful on hot-line applications
  • Esy snap-out tabs eases installation and protects connection from dirt and debris
  • Simple bolt-on connection for ease of installation
