Hubbell HBL2172WA STYLE HG DUP Receptacle, 15A 125V, 5-15R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2172WA | Codale Part # 4115693
$57.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Style Line Decorator Hospital Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Hospital
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Decorator
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585060620
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358506062
Weight
0.25 lb

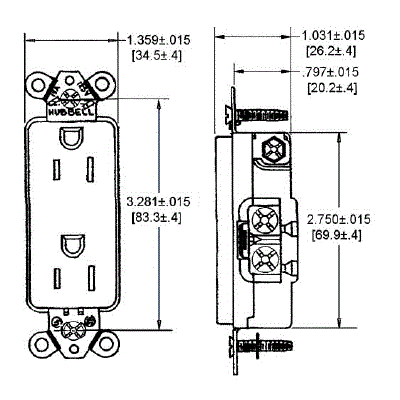

Dimensions

Height
1.03 Inch
Length
3.28 Inch
Width
1.36 in

Certifications and Compliance

Country of Origin
USA
Features
  • Aesthetic Style Line® decorator design
  • High impact resistant face
  • Triple wipe contacts
  • Standard, Self Grounding
