Burndy YAE14N43BOX Nylon Ring Terminal For 16 - 14 AWG

Manufacturer: Hubbell-Burndy | Catalog # YAE14N43BOX | Codale Part # 4117045
$177.23/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Insulated Copper Terminal; 4-6; .819 in L; .255 in W; 600 Volts Max.

Technical Information

Applications
For Use On: 600 Volts Maximum, 105 Deg C Maximum
Cable Size
16 - 14 AWG
Color Coding
Blue
Conductor Size
14 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Stud Size
0.112-0.138 in
Temperature Rating
105 degrees C
Tongue Type
Ring
Type
YAE-N
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810563458
Color
Blue
Product UPC
78181056345
Weight
0.0020 lb

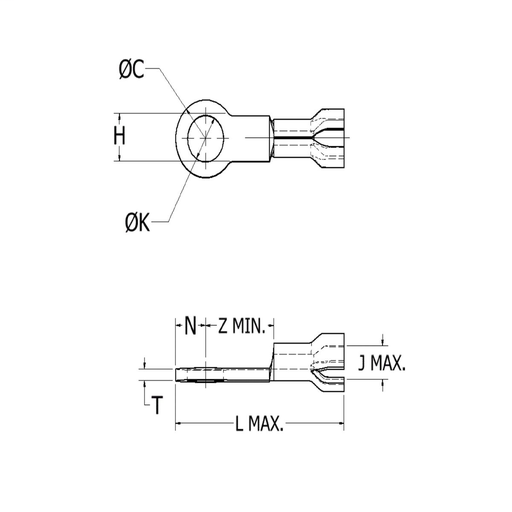

Dimensions

Height
0.15 Inch
Hole Size
0.15 in
Length
0.82 Inch
Overall Length
21 mm
Pad Width
0.25 in
Width
0.25 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Multi-finger insulation grip provides superior insulation holding characteristics, especially on EPR and other elastic-type insulation
  • Brazed seam for a strong, more durable termination
  • Manufactured of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Deep V groove, inner barrel serrations for optimum conductivity, reliability, and holding power
  • Smooth funnel entry for easy wire insertion
