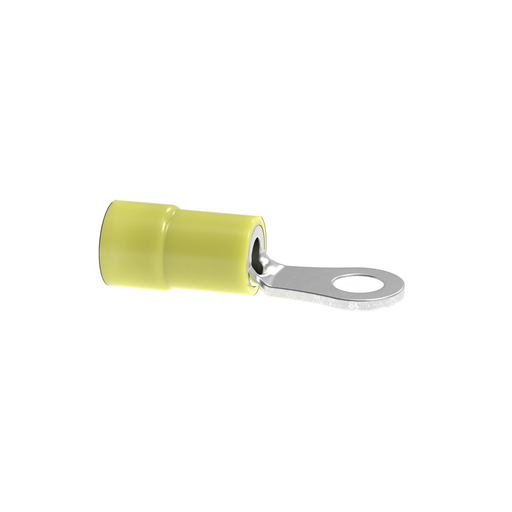

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit EV10-10RB-Q Ring Terminal, Yellow, Vinyl, 1/5" Stud, 12-10 AWG, PK25

Manufacturer: PANDUIT | Catalog # EV10-10RB-Q | Codale Part # 4117868
$0.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
StrongHold EV10-10RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #10 Stud, are yellow in color, and come in packages of 25.

Technical Information

Barrel Length
0.45 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
10 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
#10
Tongue Thickness
0.04 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
10

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StrongHold™

General Product Info

12-Digit UPC
074983281855
Color
Yellow
Finish
Tin Plated
Product UPC
07498328185
Weight
0.1050 lb

Dimensions

Outer Diameter
0.31 in
Overall Length
1.05 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
