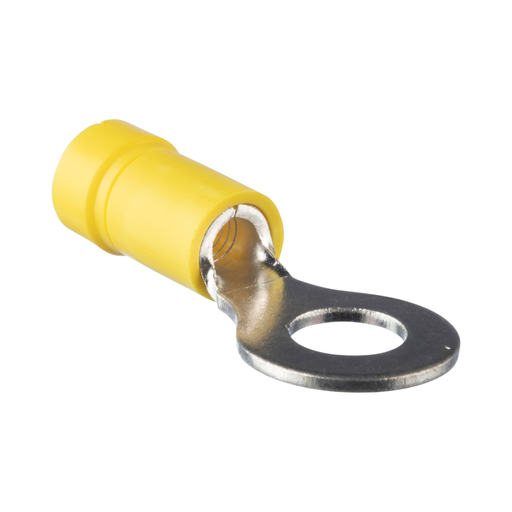

Panduit EV10-14RB-Q Ring Terminal, Yellow, Vinyl, 23/100" Stud, 12-10 AWG

Manufacturer: PANDUIT | Catalog # EV10-14RB-Q | Codale Part # 4117869
$0.60/ea
EA
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
StrongHold EV10-14RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 12-10 AWG, compatible with #1/4 Stud (M6), are yellow in color, and come in packages of 25.

Technical Information

Barrel Length
0.49 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
10 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
1/4"
Standard
CSA,E2186,UL
Tongue Thickness
0.04 in
Tongue Width
0.52 in
Type
Bell End
Voltage
600 Volt
Wire Size
10

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StrongHold™

General Product Info

12-Digit UPC
074983281862
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498328186
Weight
0.1400 lb

Dimensions

Outer Diameter
0.38 in
Overall Length
1.23 in
Width
13.2 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
