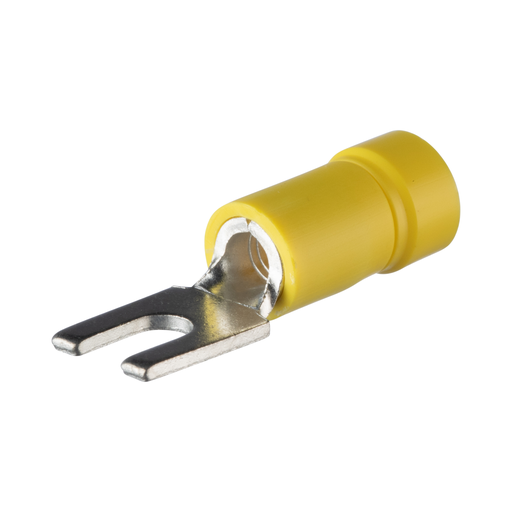

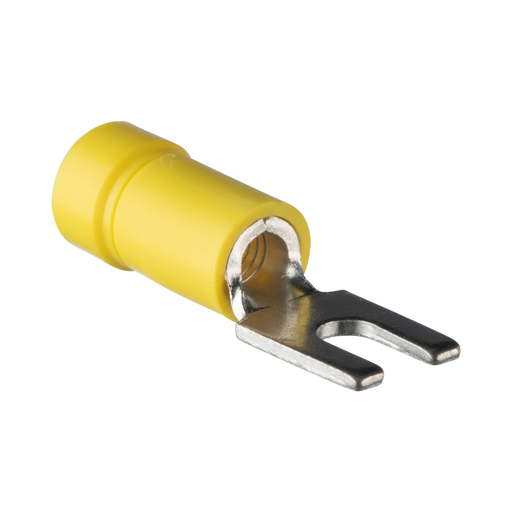

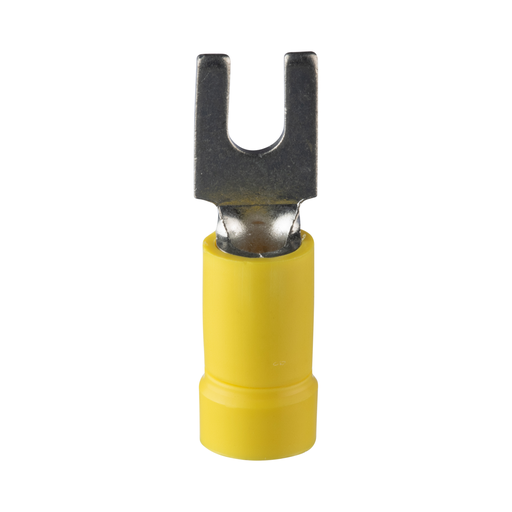

Panduit EV10-6FB-Q Loose Piece Forks, Yellow, Vinyl, 1/8" Stud, 12-10 AWG

Manufacturer: PANDUIT | Catalog # EV10-6FB-Q | Codale Part # 4117870
$0.60/ea
EA
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
StrongHold EV10-6FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 12-10 AWG, compatible with #6 Stud (M3.5), are yellow in color, and come in packages of 25.

Technical Information

Barrel Length
0.51 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
10 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
#6
Tc Connection
Funnel
Tongue Thickness
0.04 in
Tongue Width
0.31 in
Type
Fork Terminal
Wire Size
10 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StrongHold™

General Product Info

12-Digit UPC
074983280186
Color
Yellow
Finish
Tin Plated
Product UPC
07498328018
Weight
0.0500 lb

Dimensions

Overall Length
1.01 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31219
