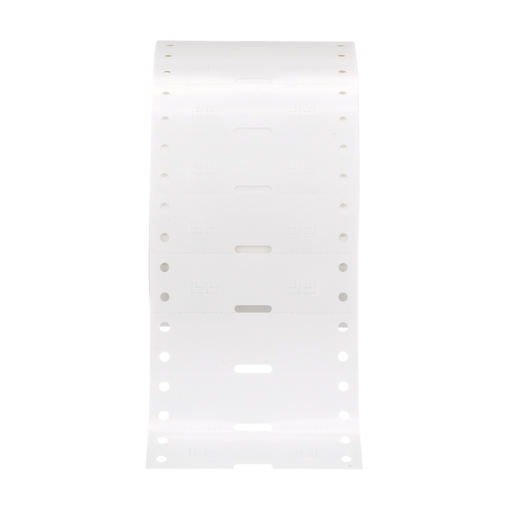

Product image for Panduit H050X034H1T Heatshrink, PO, White, Mil Grade, 2000 Lbls, TT, 0.34"x0.5"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit H050X034H1T Heatshrink, PO, White, Mil Grade, 2000 Lbls, TT, 0.34"x0.5"

Manufacturer: PANDUIT | Catalog # H050X034H1T | Codale Part # 4117879
$708.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The H050X034H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.5" x 0.34" (12.7 mm x 8.6 mm). Color White. 2000 labels per roll.

Technical Information

Cable Size
18 AWG
Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Size
0.50 x 0.34
Temperature Rating
-55 to 135 degrees C
Type
1-Side, Pre-Cut

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Code

General Product Info

12-Digit UPC
074983518500
Color
White
Product UPC
07498351850
Used With
3 in Core Thermal Transfer Label Printer
Weight
1.3500 lb

Dimensions

Diameter
4.7 mm
Height
0.34 Inch
Length
0.34 Inch
Overall Length
0 in
Width
0.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
