Product image for Panduit LAM2A2/0-14-6Y 1-Hole 2 Barrel Aluminum Mechanical Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

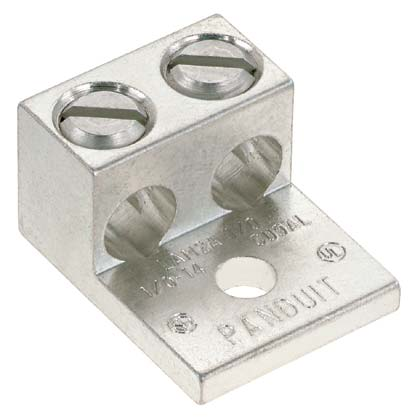

Panduit LAM2A2/0-14-6Y 1-Hole 2 Barrel Aluminum Mechanical Lug

Manufacturer: PANDUIT | Catalog # LAM2A2/0-14-6Y | Codale Part # 4117881
$1,651.45/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
One-hole, aluminum, two barrel lug, dual barrel, type LAM2A, NEMA hole sizes and spacing, #14 - 2/0 AWG, 1/4 (6.4mm) stud hole.

Technical Information

Amperage
NA Amp
Applications
Stranded Aluminum or Copper Code Conductor
Barrel Length
0.63 in
Base Material
Aluminum
Bolt Size
1/4 in
Cable Size
AWG
Conductor Size
14-2/0 AWG
Conductor Type
Aluminum/Copper
Material
Aluminum
Number of Conductors
2
Number of Holes
1 Hole
Stud Size
1/4 In.
Temperature Rating
90 degrees C
Tongue Thickness
0.19 in
Tongue Type
Straight
Tongue Width
1.25 in
Type
Dual Barrel, Non-Insulated
Voltage
600 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983592531
Finish
Tin Plated
Product UPC
07498359253
UNSPSC
39121408
Used With
Aluminum or Copper Code Conductors
Weight
0.0046 lb

Dimensions

Height
0.8 Inch
Overall Length
1.47 in
Width
1.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
