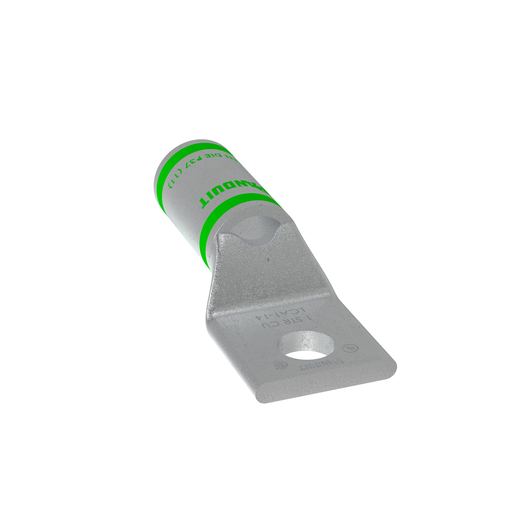

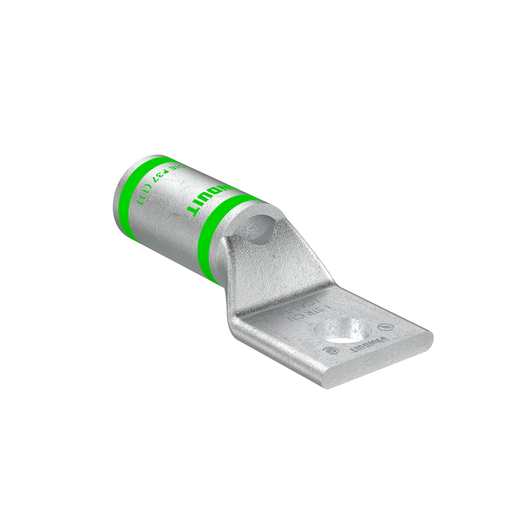

Product image for Panduit LCA1-14-E 1-Hole #1 AWG Copper Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit LCA1-14-E 1-Hole #1 AWG Copper Compression Lug

Manufacturer: Panduit | Catalog # LCA1-14-E | Codale Part # 4117890
$1,432.25/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
65 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCA1-14-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
0.88 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Green
Material
Copper
Number of Holes
1 Hole
Size
#1 AWG Code
Standard
ANSI C-73
Stud Size
1/4 in
Tongue Thickness
0.11 in
Tongue Type
Standard
Tongue Width
0.7 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900190
Color
Green
Finish
Tin Plated
Product UPC
07498390019
Weight
0.0097 lb

Dimensions

Outer Diameter
0.47 in
Overall Length
1.79 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico,USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Prop 65
  • No
