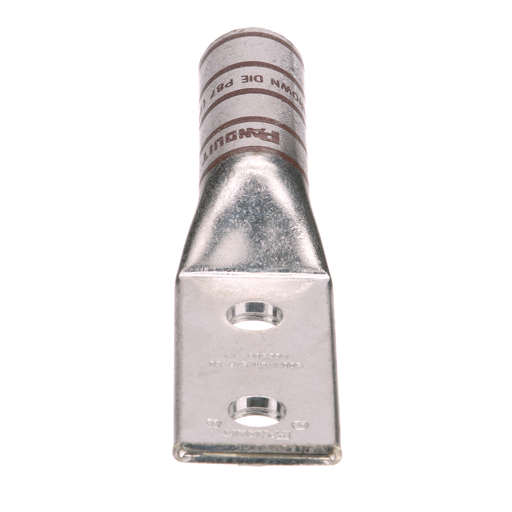

Image thumbnail 2

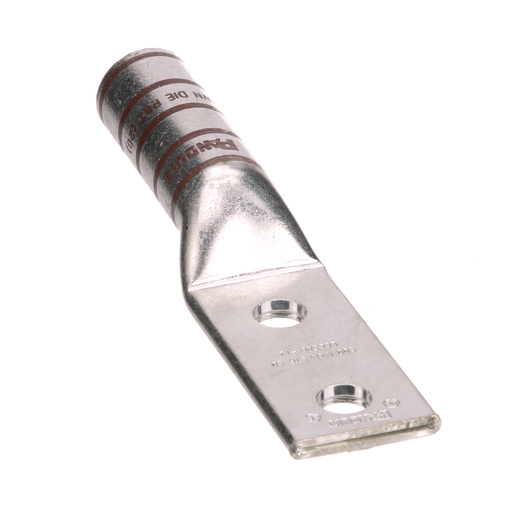

Image thumbnail 3

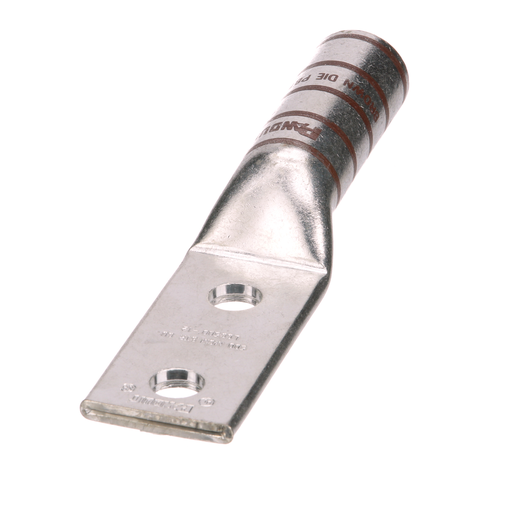

Image thumbnail 4
Image thumbnail 5
Email

Panduit LCC500-12-6 2-Hole 500 MCM 1/2 Inch Stud Hole Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCC500-12-6 | Codale Part # 4117904
$8,617.66/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
269 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCC500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
2.5 in
Barrel Type
Long without Inspection Window
Cable Size
AWG
Color Coding
Brown
Conductor Size
500 kcmil
Material
Copper
Number of Holes
2 Hole
Size
500 kcmil Code
Stud Size
1/2 in
Tongue Thickness
0.22 in
Tongue Type
Standard
Tongue Width
1.54 in
Type
Type LCC
Voltage
35 kV

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983902651
Color
Light Brown
Finish
Tin Plated
Product UPC
07498390265
Weight
0.0395 lb

Dimensions

Outer Diameter
1.06 in
Overall Length
6.36 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Prop 65
  • No
