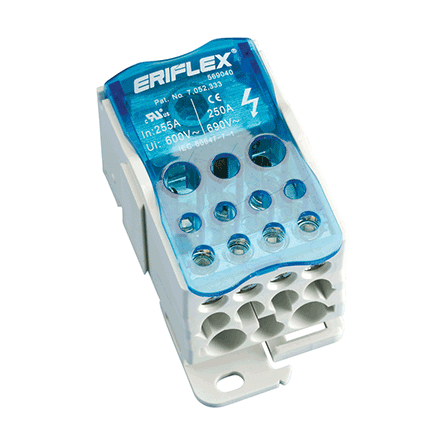

Product image for NVENT EFS 569040 Single Pole Distri
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

NVENT EFS 569040 Single Pole Distri

Manufacturer: nVent Hoffman | Catalog # UD250A | Codale Part # 4119196
$8,460.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Pole Dist. Block, 255 A UL/CSA, Cable Line, 11 Cables Load, Copper

Technical Information

Flamability Class
UL 94V-0
IP Rating
IP 20

Packaging

Shipping Weight
0.93 lb

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510569044
Product UPC
78351056904

Dimensions

Height
3.79 Inch
Width
1.93 in
Features
  • Connects ERIFLEX FLEXIBAR on line side using FLG-250 Flat Terminal Connection
  • Halogen free
  • 95% fill ratio
  • Easily clips onto DIN rail or mounts to panel with screws
  • Gangable for building multi-pole power blocks
  • Design allows for visual inspection of conductor and confirmation of connection
  • Screw retaining cover is hinged and removable
  • Tinned copper block allows for copper or aluminum conductor connections
Notes
  • Reference the Spec Sheet in the Downloads tab for complete product specifications.
Certification Details
  • UL 1059
Specifications
  • Flammability Rating: UL 94V-0
