HCI HBL26W08 WATERTIGHT PLUG, NON-N

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26W08 | Codale Part # 4119325
$78.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

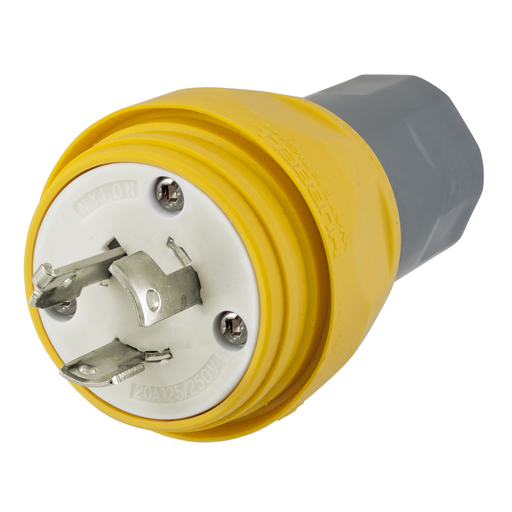

Watertight Devices, Twist-Lock® Plug, 20A, 125/250V AC, 3 Pole, 3 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial and Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
12-10 AWG
Cord Type
Portable
Current
20 Amp
Material
Composite
Mounting Type
Cord
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

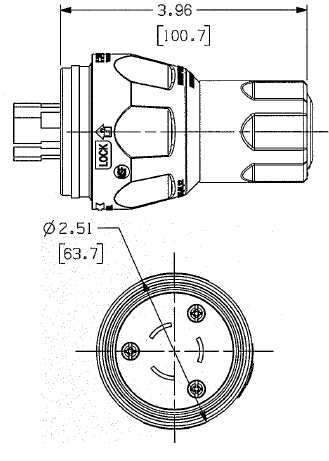

2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screw
Type
Standard Sized
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456294
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358545629
Weight
0.3000 lb

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
