Burndy YAV28LNT38FX 4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window, Narrow Tongue Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Purple Color Code, 15 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YAV28LNT38FX | Codale Part # 4119646
$53.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Copper Compression Lug, Narrow Tongue, 1 Hole w/ Inspection Window, 4/0 Flex, 3/8" Stud, Short Barrel, Tin - Electro Plated.

Technical Information

Applications
For Use On: Flex Conductors, UL Listed 90 DEG C, 600 Volts to 35 kV
Cable Size
4/0 AWG, 4/0 Weld, 4/0 (550/#24) DLO
Color Coding
Purple
Conductor Size
4/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.375 in
Type
YAV-L-NTFX, Standard Barrel
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG,Terminals

General Product Info

12-Digit UPC
781810343678
Color
Purple
Finish
Tin Plated
Product UPC
78181034367
Weight
0.1120 lb

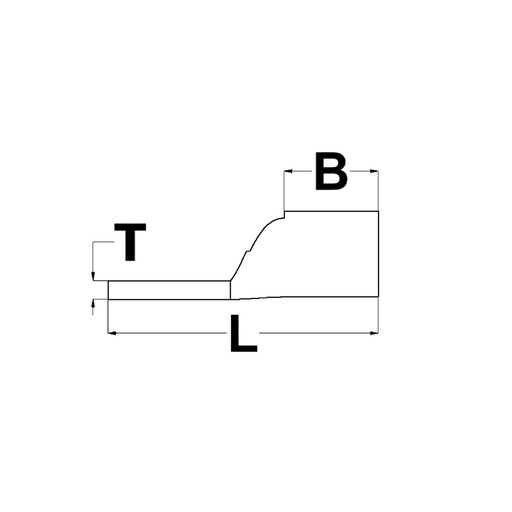

Dimensions

Height
0.77 Inch
Length
2.42 Inch
Overall Length
2.42 in
Width
0.94 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • Compression Narrow Tongue Terminal, UL Listed 90 DEG C, 600 Volts to 35 kV , With Inspection Window, Tongue Angle: Straight, Finish: Tin Plated, Die Index: 15, Wire Strip Length: 1-1/16 IN
