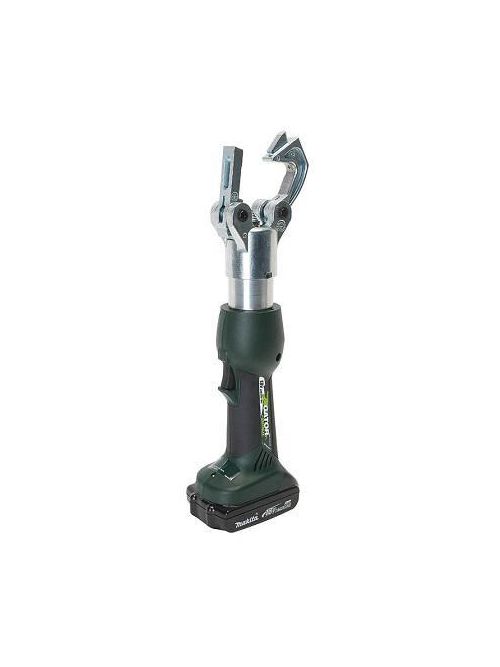

Product image for Greenlee EK6IDL11 120 Volt Battery Powered Dieless Crimping Tool
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

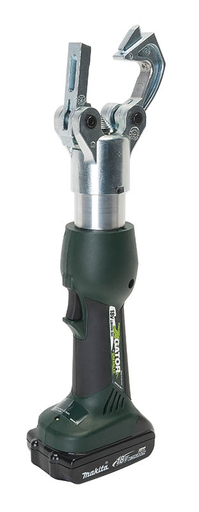

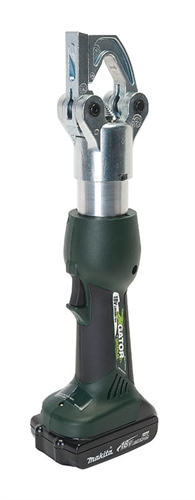

Greenlee EK6IDL11 120 Volt Battery Powered Dieless Crimping Tool

Manufacturer: Greenlee | Catalog # EK6IDL11 | Codale Part # 4120782
$8,960.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

Technical Information

Battery Type
1.5A Lithium-Ion
Crimping Force
3-6 T
Type
Indent Crimper

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310028277
Product UPC
78331002827
Weight
5.5 lb

Dimensions

Height
15 Inch
The EK6ID Offers All Well Known Advantages of The Greenlee Gator Line of Products
  • Single trigger operation.
  • Clear marking of crimped connectors enables subsequent control
  • Automatic retraction, ARS (Automatic Retraction Stop)
  • Extreme Accountability: Risk of wrong selection of dies is eliminated
  • Electronic control of crimping operation. Proven Intelli-Crimp technology of all Gator crimping tools
  • Gator Eye Compatibility
  • Pressure sensor for the electronic control of crimping operation.
Description
  • Secondly it crimps smaller cross sections up to 1/0 AWG
  • First it fixes cable lugs and connectors to the correct position prior to crimping operation.s
  • Compact design, low weight and heavy duty performance
  • The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
  • The EK6IDL consists of two individual pistons (large exterior and a small interior one) The interior small piston transmits a force of 30kN and features two functions
  • Dual stage telescopic cylinder
Capacity
  • Copper #8 - 500 kcmil (MCM)
  • Standard Stranded Wire classes - B, C
  • #8 - 350 kcmil (MCM) DLO (Cu) Locomotive #8 - 373.7 kcmil (MCM)
  • Aluminum 1/0 - 350 kcmil (MCM) Fine Stranded (Cu) Wire classes - G, H, I, K, M
Cable Type
  • Wire Classes
  • B, C, G, H, I, K, M, and DLO
