Panduit UTP28SP20BU Cat 6 28 AWG UTP Copper Patch Cord, 20 ft, Black

Manufacturer: Panduit | Catalog # UTP28SP20BU | Codale Part # 4120822
$75.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

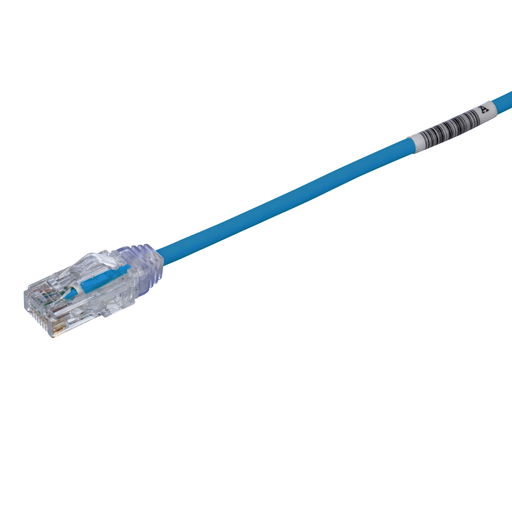

The TX6-28™ Cat 6 UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 20 feet in length, 0.150 inches (3.8mm) nominal in diameter, and blue.

Technical Information

Applications
For 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Voice/Data Systems, Voice Over Internet Protocol (VoIP), Digital Video and Broadband/Baseband Analog Video
Boot Color
Clear
Cable Type
26 AWG U/UTP
Conductor Type
Stranded
Connector Type
RJ45 Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Temperature Rating
-10 to 75 degrees C
Type
Category 6, Performance

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
TX6-28™

General Product Info

12-Digit UPC
074983654819
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498365481
Weight
0.2800 lb

Dimensions

Cable Length
20 ft
Outside Diameter
3.8 mm
Overall Length
20 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
