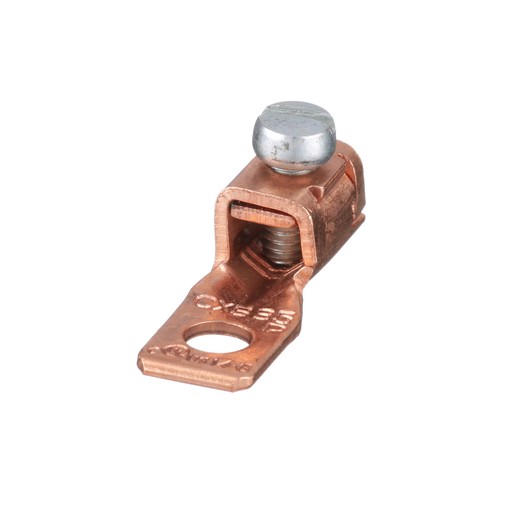

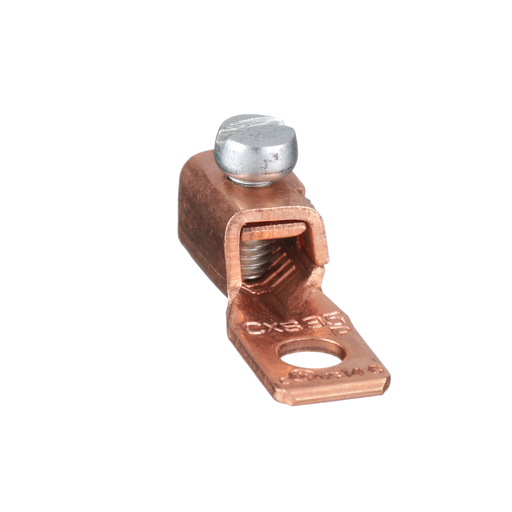

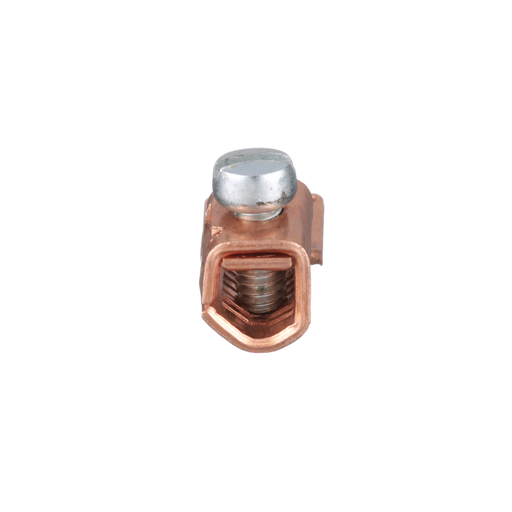

Panduit CXS35-36-C Mechanical Connector-Lugs, Copper, One 3/16" Stud, PK100

Manufacturer: PANDUIT | Catalog # CXS35-36-C | Codale Part # 4121260
$478.64/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The CXS35-36-C Mechanical Connector Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel slotted screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Barrel Length
0.47 in
Material
Copper
Tongue Thickness
0.05 in
Tongue Type
Fixed
Tongue Width
0.38 in
Type
Mechanical Lug

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983878338
Finish
Outer Surface to be SPI A-2, All other surfaces to be common polish
Product UPC
07498387833
Weight
0.0100 lb

Dimensions

Height
0.39 Inch
Overall Length
1.08 in
Width
9.6 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus listed up to 600V and temperature rated to 90 degrees C
