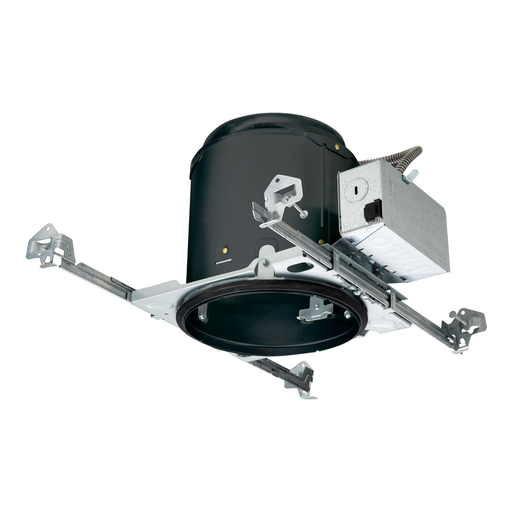

Halo E7TAT 6" NON-IC, Air-Tite, New Construction Housing, 120V

Manufacturer: Cooper Lighting Solutions | Catalog # E7TAT | Codale Part # 4121477
$14.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
The E7TAT is a compact and efficient recessed Non-IC housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in non-insulated ceilings; if ceiling insulation is present it must be kept 3" from all sides of housing. Housing features Air-Tite code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

Technical Information

Aperture Size
6 in
Applications
Lighting
Ballast Type
N/A
Lamp Type
Incandescent
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
1
Style
(blank)
Type
6" E7 Housing
Voltage
120 Volt
Wattage
150 Watt

Manufacturer Information

Brand
Halo
Sub Brand
E7TAT

General Product Info

12-Digit UPC
080083737666
Finish
Raw Finish
Product UPC
08008373766
Weight
2.15 lb

Dimensions

Diameter
6 Inch
Height
7-1/4 Inch
Length
13.7 Inch
Width
11.25 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • For use in non-insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
