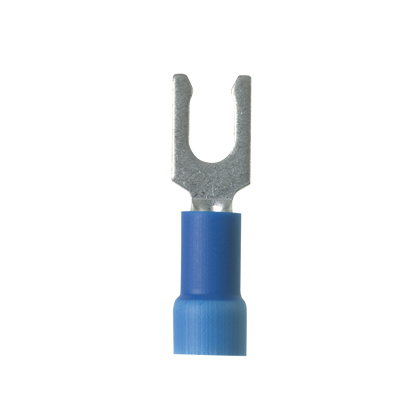

Product image for Panduit PV14-10LFX-C 18 to 14 AWG Blue Expanded Vinyl Insulated Locking Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Panduit PV14-10LFX-C 18 to 14 AWG Blue Expanded Vinyl Insulated Locking Fork Terminal

Manufacturer: Panduit | Catalog # PV14-10LFX-C | Codale Part # 4122374
$209.53/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Locking Fork Terminal, vinyl insulated, 18- 14 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.

Technical Information

Barrel Length
0.51 in
Barrel Type
Brazed Seam With Insulation Support
Color Coding
Blue
Conductor Size
14 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA,E2186,UL
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.33 in
Type
Bell End
Voltage
600 Volt
Wire Size
18-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983808304
Color
Olive, Orange, Royal Blue and Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product Type
Terminals
Product UPC
07498380830
UNSPSC
39121409
Weight
0.0030 lb

Dimensions

Length
1.01 Inch
Overall Length
1.01 in
Width
8.4 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Compare
