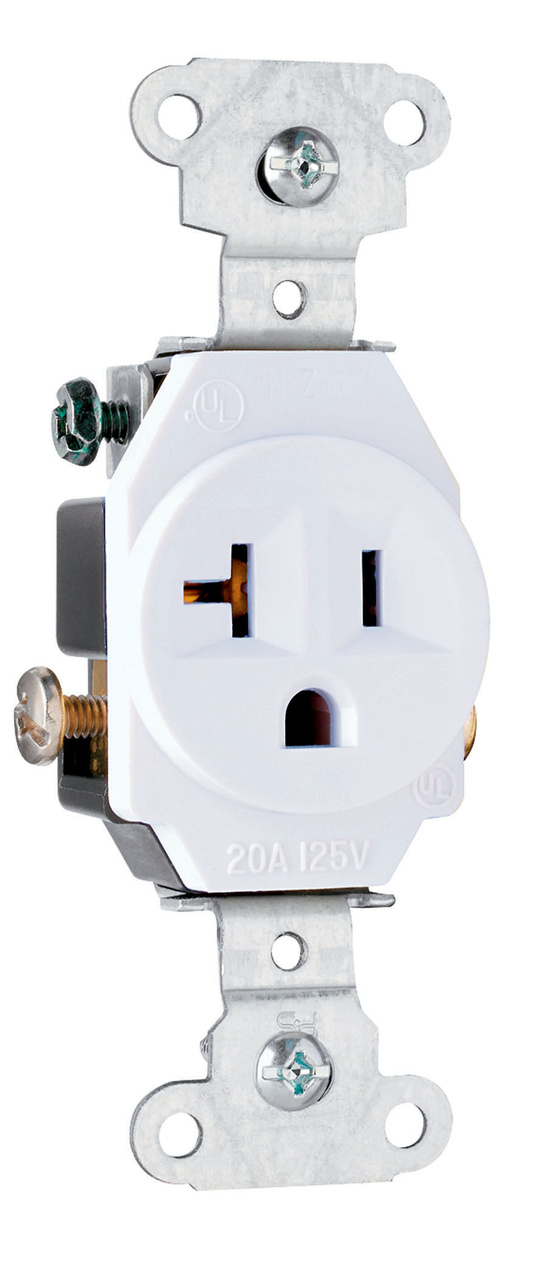

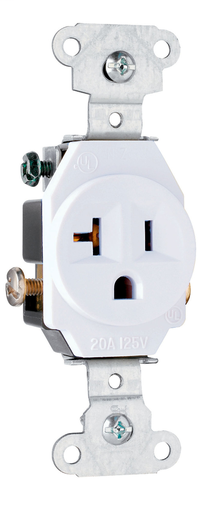

Pass & Seymour 5351-W Heavy-Duty Spec Grade Single Receptacle Side Wire 20Amp 125Volt, White

Manufacturer: Legrand Pass & Seymour | Catalog # 5351W | Codale Part # 412286
$10.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side Wire 20amp 125volt White

Technical Information

Amperage
20 Amp
Applications
Commercial,Residential
Capacity
Single
Conductor Size
4 AWG
Connection Type
Wire Ground, Side Wire
Duty Rating
Heavy Duty
Grade
Residential/Commercial
Material
Thermoplastic
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
Tc Connection
Wire Ground
Type
Non-Reversing
Voltage
125 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007535150
Color
White
Finish
Gloss
Product UPC
78500753515
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Auto-ground clip assures positive ground.
  • Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
