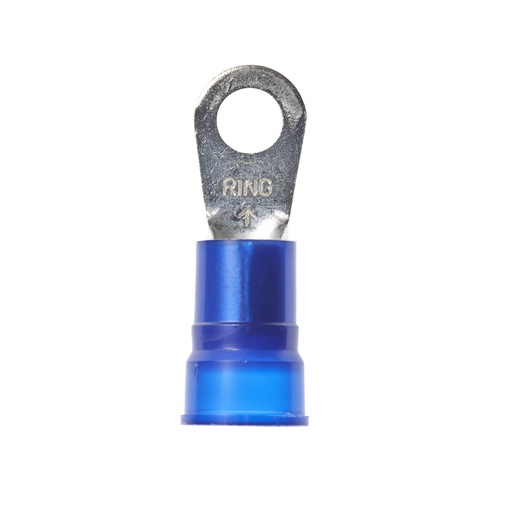

Image thumbnail 1
Email

3M MN6-14R/SX Nylon Insulated Ring (10/Bottle)

Manufacturer: 3M | Catalog # 7000133270 | Codale Part # 4123046
$7.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
6 AWG
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105 C
Standard
UL And CSA
Stud Size
1/4 in
Terminal Size
6 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586372
Color
Red
Product UPC
05112858637
Weight
0.1700 lb

Dimensions

Length
1-1/2 Inch
Overall Length
1.5 in
Thickness
0.05 in
Width
0.47 in
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • 10/carton, 100/case
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Blue nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Accommodates wire size 6 AWG
