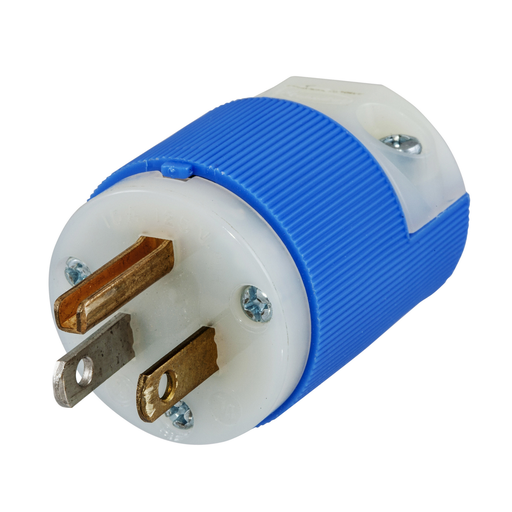

Hubbell HBL5266CBL Plug, 15A 125V, 5-15P, BLUE/W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5266CBL | Codale Part # 4124091
$61.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15P, Blue and White, Single Pack

Technical Information

Amperage
15 Amp
Conductor Size
18-10 AWG
Current
15 Amp
Horsepower
0.50 hp
Material
Polycarbonate
NEMA
5-15P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
#8-32 Brass/Nickel Plated
Standard
C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA® WD-6,UL,UL498 File E1706
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585176314
Color
Blue,White
Housing Material
Nylon-Black
Product UPC
78358517631
Weight
0.15 lb

Dimensions

Height
1.67 Inch
Length
2.87 Inch
Width
1.670 in

Certifications and Compliance

Certifications
CSA Certified To C22.2 No. 42 File 280,UL Listed To UL498 File E1706
Country of Origin
Puerto Rico
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
  • Weatherproof Boot
