Hubbell HBL2313VY 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20R Yellow Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2313VY | Codale Part # 4125128
$72.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Connection Type
Pressure Screw Terminal
Current
20 Amp
Horsepower
1 hp
Material
Composite

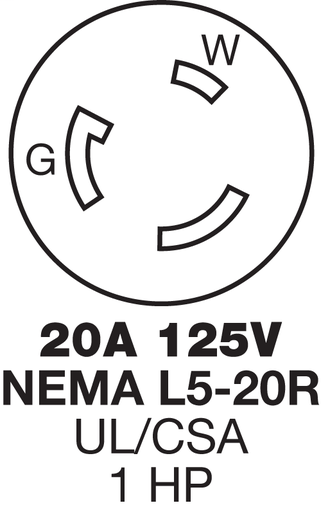

NEMA
L5-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Insulated, Standard, 2-Pole
Voltage
125 Volt
Wire Count
3
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585235561
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523556
Weight
0.25 lb

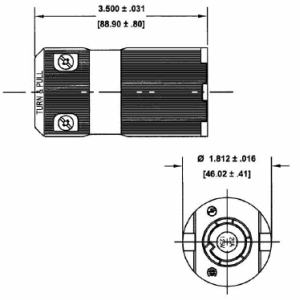

Dimensions

Height
3-1/2 Inch
Length
1.81 Inch
Width
1.81 in

Certifications and Compliance

Country of Origin
USA
Features
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Standard Product
